Sound pressure level (LP/LC) measurement

There are two types of sound pressure level such as without the frequency weighting (flat characteristic FLAT) sound pressure level (LP) and with the frequency characteristic correction (C-Weighted) C-Weighted sound pressure level (LC). In addition, sound pressure level has two measurement modes same as the sound level, such as displaying instantaneous value and displaying maximum value in a second.

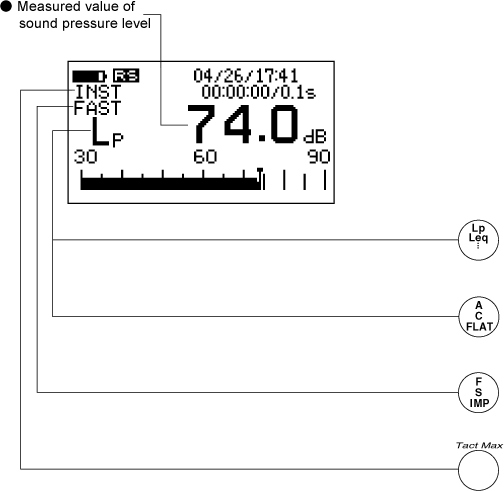

1. Measurement procedure of sound pressure level (LP)

Please follow the procedure below to measure the sound pressure level (LP).



◆Operation procedure

Set the measurement condition of this unit for the sound level measurement.

Display screen: Standard screen (Panel switch [LIST])

Frequency correction: FLAT (displaying P) (Panel switch [A/C/FLAT])

Dynamic characteristic: FAST or SLOW (Panel switch [F/S/IMP])



Set the measurement data display for sound pressure level (LP) measurement.

Press the panel switch [LP/Leq…] to display the sound pressure level (LP).



Set the measurement mode.

Press the panel switch [2nd] to switch the panel switch to secondary function.

Then press the panel switch [Tact Max] to set the instantaneous mode (INST) or maximum value display mode (TMAX 1) (maximum value in a second).



Read the measured value on the digital display.

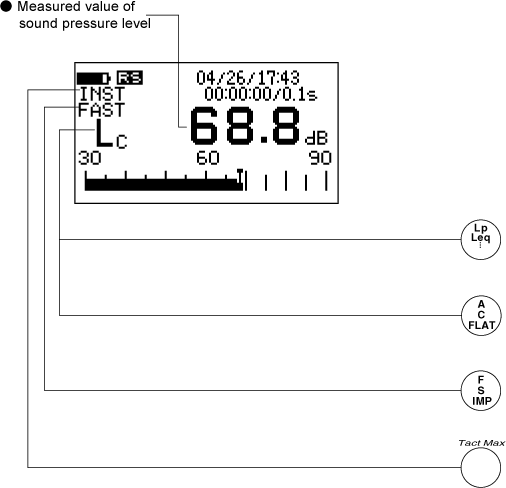

2. Measurement procedure of C-Weighted sound pressure level (LC)

Please follow the procedure below to measure the C-weighted sound pressure level (LC).



◆Operation procedure

Please do not turn the volume forcibly or push it strongly. It may cause a failure.



Set the measurement condition of this unit for the sound level measurement.

Display screen: Standard screen (Panel switch [LIST])

Frequency correction: C (Panel switch [A/C/FLAT])

Dynamic characteristic: FAST or SLOW (Panel switch [F/S/IMP])



Set the measurement data display for sound pressure level (LC) measurement.

Press the panel switch [LP/Leq…] to display the sound pressure level (LC).



Set the measurement mode.

Press the panel switch [2nd] to switch the panel switch to secondary function

Then press the panel switch [Tact Max] to set the instantaneous mode (INST) or maximum value display mode (TMAX 1) (maximum value in a second).



Read the measured value on the digital display
