Mounting method of the DG-4320/4340 Digital Gauge Counter to the panel.

The DG-4320/4340 can be mounted on a panel with a thickness of 1 mm to 3.2 mm.

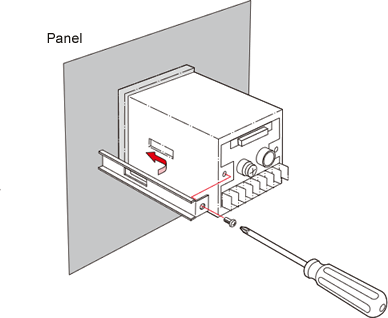

1. Insert the counter from the front of the panel.
2. Hold the panel mounting fixture guides to the side holes of the counter and fasten each fixture with the screw provided.



Panel mounting method



Panel cutout dimensions

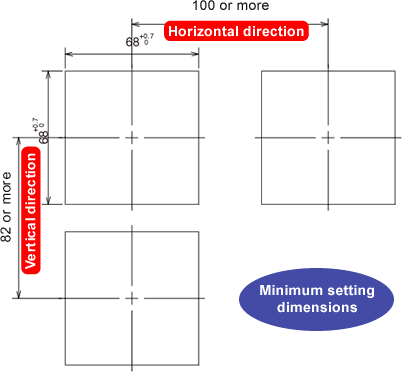

Minimum setting dimensions


Revised:2000/12/08
