Mounting method of the DG-4280 Digital Gauge Counter to the panel.

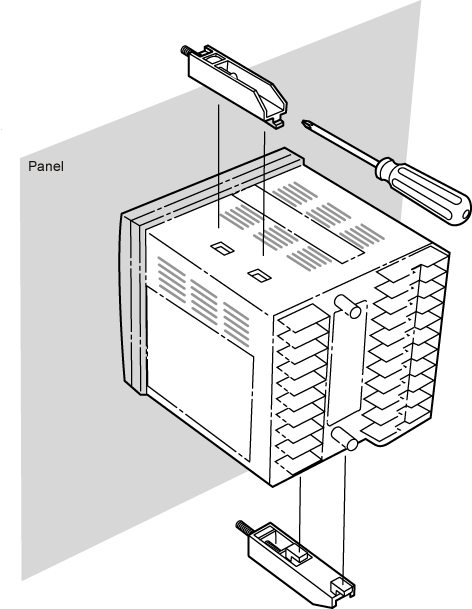

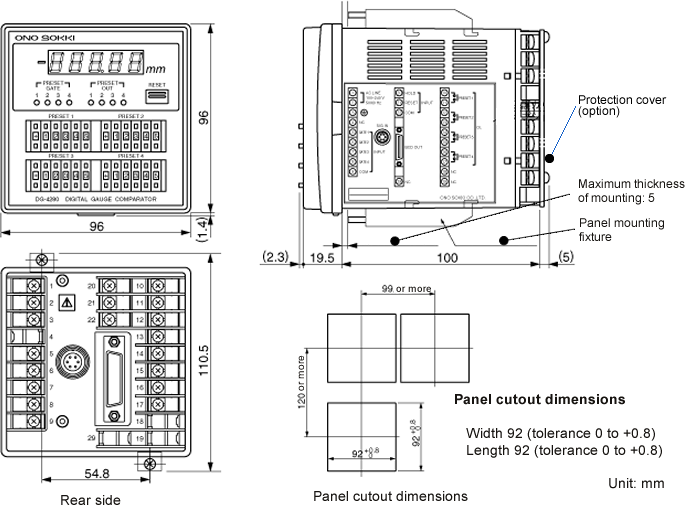

The DG-4280 can be mounted on a panel cut in the size of 92+0.80 × 92+0.80 mm. The panel should be a steel plate with a thickness of 2 mm or more and 5 mm or less. Firmly fix the top and bottom of the counter to the panel using the attached rack mounting fixture.




Revised:2000/12/08
