Battery pack (DR-202B) for CF-3600

1. Battery pack



Battery (DR-202B lithium ion secondary battery ) is a standard accessory. The charger is built in the body unit. It is charged if connected to AC adopter.





2. Purpose and duration of the battery pack



Battery pack is for instant power failure. So the duration of usage of battery pack by its own since fully-charged is for 20 minutes. When the volume of battery pack is shortened, the front panel and the low battery indicator (LOW BAT) lights up in red.







3. Precaution for Battery Pack



If you do not use for a long time, remove battery pack from the main body of CF-3600. If the battery pack is built-in for a long time without usage, internal discharge progresses to be complete discharge and this shortens the life of battery pack.

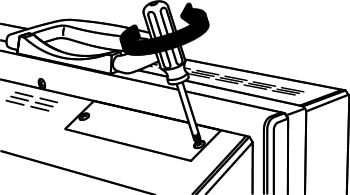

The battery pack is an consumable part. This is replaceable on customer side. See "Replacing procedure for battery pack" for detail. Make sure to use battery packs specified to avoid disorder, wrong operation and hazard.
