OC-1300 software FAQ


How to change the color pattern of the 3D graph

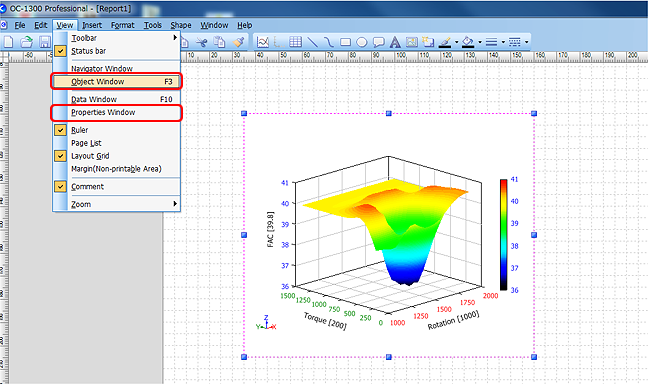

Click "Objet Window" and "Properties Window" in the View menu after creating 3D graph.

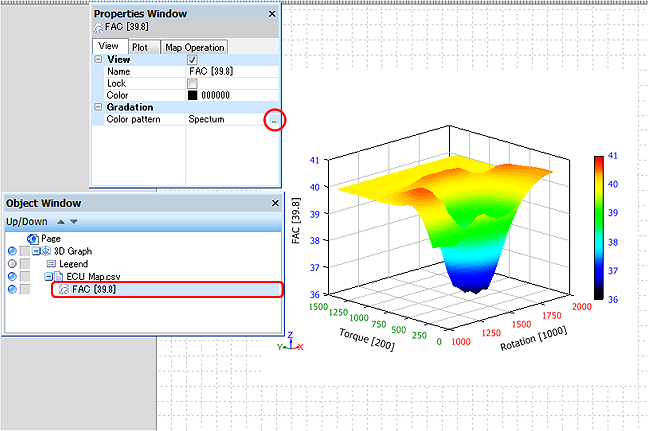

Click Z axis item (FAC in here) in the Object Window and click "Color pattern" in the Properties Widow.

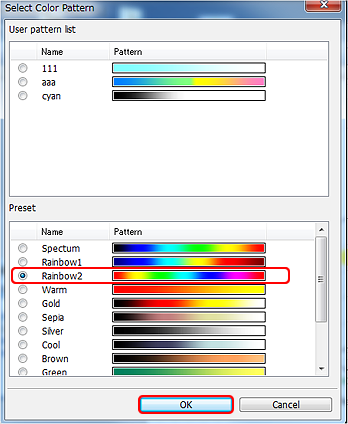

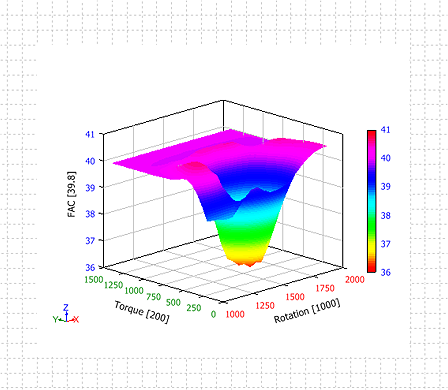

"Select Color Pattern" dialog is displayed, so select the color pattern you want to change. When you click "OK", the color of the 3D graph is changed.







Revised:2007.03.19
