OC-1300 software FAQ


How to change the layout grid as a section paper



To display the layout grid as a section paper, set the number of divisions. The setting of the grid can be made in the [Preferences] dialog box in the Tools menu.





When you click the [Preferences] command, the [Preferences] dialog box is appeared. Then, click [Layout grid] which appears on the Setting Items.
To display the layout grid as a section paper, change the number of divisions in here. Currently, the grid space is set as 5 (mm), so set the number of divisions as 4 to create 1mm square grid. When you finish the setting, click [OK] button.

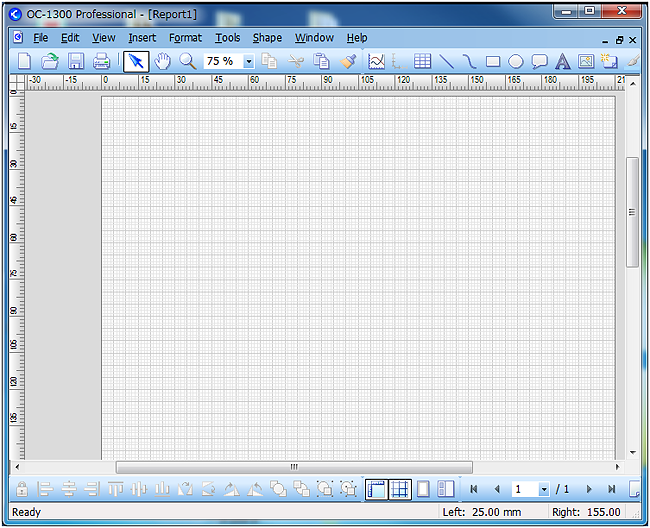

When you click [OK], the grid layout is changed like a section paper.
