OC-1300 software FAQ


How to change the data item



Select the data you want to be change.

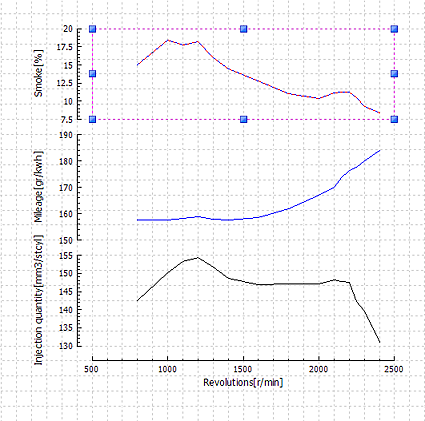

*Use [Smoke] data in here.





Right click the mouse and select [Open Properties] from the drop down list.





Change the [Y data] on the Properties Window from [Smoke] to [Torque].





The Y-axis data item of the graph is changed from [Smoke] to [torque].

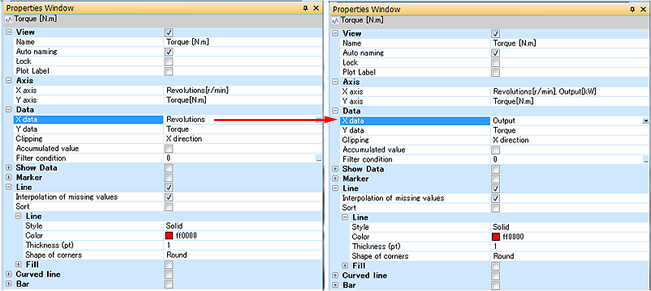

When the X data item is changed from [Revolution] to [Output]…

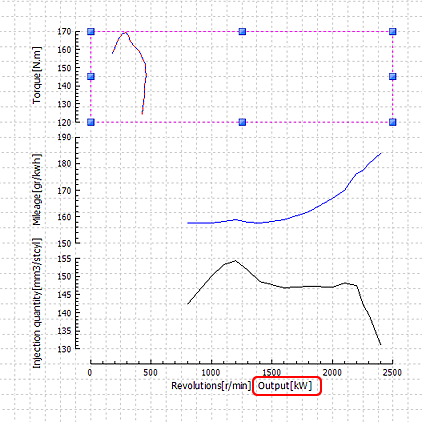

X-axis is changed from [Revolution] to [Output].





Revised:2007.03.19
