New Product

What is LC-8310?

LC-8310 compact and high-sensitive GPS speedometer can measure speed, distance and other vehicle-related measurement items for vehicles and two-wheel vehicles, etc. by satellite signals of GPS/GLONASS and IMU. Function to wirelessly communicate data (wireless data communication function) makes measurement on site easy.

Features

•Wireless data communication between vehicle and base station

Velocity value data of vehicle measured by the LC-8310 is transmitted to PC at base station(out side the vehicle) via LC-0873 (communication unit:option).
The LC-0873 connected to the base station PC can communicate with wireless communication devices up to 63 ^*, such as LC-0873.

•Various functions for vehicle tests

·Analog output of velocity, pulse output of distance, 4ch analog input, 1ch pulse input, CAN communication, and various vehicle test functions (followed the previous model LC-8300)

·USB memory can be used for data storage and data transmission.

•High precision measurement with satellite signals (GPS&GLONASS) and IMU

·High precise measurement is enabled with Ono Sokki’s original technology. Depending on the situation, the proportion of each signal (GPS, GLONASS, and IMU) used is changed

Measurement performance:
Velocity accuracy of ±0.2 km/h, distance accuracy of ±0.2 ％（300 m/h）

Applications

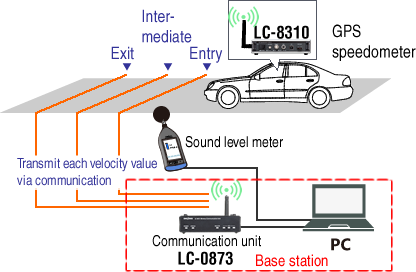

-Measurement of vehicle exterior noise on a test course ^*-

You can record and display the velocity data (at the time of entry, intermediate, and exit) measured by the LC-8310 (on-vehicle) and the data of sound level meter on a PC at a base station with wireless communication.

Also, the data calculated on a PC can be transmitted to the speedometer.
Driver can check the data without getting off the vehicle, and perform vehicle test smoothly.

*For connecting with 63 units / vehicle exterior noise measurement, we will support with custom-order software after the separate consultation.

*Please contact your nearest distributor for details about compliant with regulation for wireless communications of each country.
