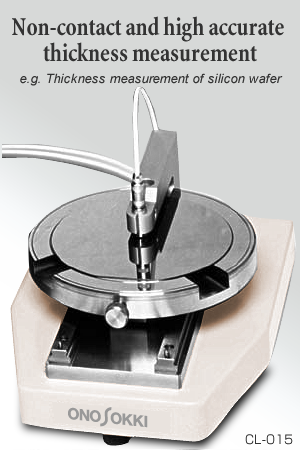

Note: Two sensors are required to be set one above and one below between this table.	Electrostatic Capacitance type Gap Detectors having high stability enable non-contact and high-accurate thickness measurement. It can be selected from 10 kinds depending on type and shape of measurement objects. Best-suited system can be built up in combination with the Thickness Meter (CL series) or Displacement Meter (VT series). They are effective for vibration or skew measurement of rotating shaft in turbine, electric motor, compressor, machine tool, and thickness/width measurement or control of moving material. Various kinds of applications are available in measurement and control-related field such as displacement, deflection or warpage.

Electrostatic Capacitance-type Gap Detectors VE Series

Standard type

VE-5010
(Cable-attached model)

VE-1020
(Cable-attached model)

VE-1520

VE-3020

VE-8020

Measurement range:
50 to 500 μm
Diameter: Ø6
Cable length: 1.5 m

Measurement range:
100 to 1,000 μm
Diameter: Ø8
Cable length:1.5 m

Measurement range:
150 to 1,500 μm
Diameter: Ø10
Cable (option):
VL-1520/1521(1.5 m)

Measurement range:
300 to 3,000 μm
Diameter: Ø20
Cable (option):
VL-1520/1521 (1.5 m)

Measurement range:
800 to 8,000 μm
Diameter: Ø40
Cable (option):
VL-1520/1521 (1.5 m)

VT-5200/5700 CL-5610/5610S

↑ Click the each model for more details.

Clamp-shape type (common to Ø 10 mm)

Measurement range :
20 to 200 μm
Diameter : Ø3
(tip of a detector)
Cable(option):
VL-1520/1521 (1.5 m)

Measurement range : 50 to 500 μm
Diameter: Ø6
(tip of a detector)
Cable(option)
VL-1520/1521 (1.5 m)

Measurement range : 100 to 1000 μm
Diameter: Ø8
(tip of a detector)
Cable(option)
VL-1520/1521 (1.5 m)

Measurement range: 300 to 3,000 μm
Diameter: Ø20
(tip of a detector)
Cable(option):
VL-1520/1521 (1.5 m)

Measurement range : 800 to 8,000 µm Diameter: F40 Cable(option):
VL-1520/1521 (1.5 m)

VT-5200/5700 CL-5610/5610S

↑ Click the each model for more details.

Non-contact Thickness Meter (Electrostatic Capacitance type)

The CL-5610 series is a Non-contact Thickness Meter to measure thickness of conductors, semiconductors and insulators by using the VE series (Electrostatic Capacitance type Gap Detector). The electrostatic capacitance type gap detector has lots of experience as non-contact sensor and enables high accurate and stable thickness measurement with easy operation. The CL-5610 series uses 2 sensors to measure conductors and semiconductors as standard function. An insulator measurement can be performed by using 1 sensor with the CL-0300 (optional function). The CL-5610 is set up away from the VE sensor at 1.5 m The CL-5610S can be set up away from the VE series sensor up to 11.5 m.

Line up

CL-5610
Non-contact Thickness Meter

CL-5610S
Non-contact Thickness Meter (Separate Gap Converter type)

CL-0420
Gap Converter

■Thickness of the conductor or semiconductor under measurement
■Gap A between sensor A and the object under measurement
■Gap B between sensor B and the object under measuremen

■ Thickness of the conductor or semiconductor under measurement.
■ Gap A between sensor A and the object under measurement.
■ Gap B between sensor B and the object under measurement.
■ Separate Gap Converter （CL-0420) type
Cable length between a main unit and the VE sensor is at 2.5 m
(provided as standard).
（The VE sensor can be set up away from a main unit up to 10 m by using optional function.)

CL-0110 :	Analog output and comparator output function
CL-0200 :	High-resolution Measurement Function (up to at 0.02 μm of display resolution)
CL-0210	High-impedance Grounding Mode
CL-0300 :	Insulator Measurement Function

VE series

↑ Click the each model for more details.

Non-contact Displacement Meter (Gap Converter separated type)

The VT series include the VT-5200 series and the VT-5700 series.
Output response frequency can be selected from 4 kHz or 10 kHz depending on your requirement.

VT-5200 series: Suitable for usage in laboratory.
AC power.

VT-5700 series: Compact type.
Suitable for usage on production line. ±15 VDC

Lineup of Non-Contact Displacement Meters

Output : 0 to 5 V 0 to 100 %F.S.
Linearity : ±0.2 %F.S. 10 to 100 %F.S.
Response frequency :
DC to 4 kHz
Monitor display : 20-segment LED Analog output offset function

Output : 0 to 5 V 0 to100 %F.S.
Linearity : ±0.25 %F.S. 10 to 100 %F.S.
Response frequency :
DC to 10 kHz
Monitor display : 20-segment LED Analog output offset function

Output : 0 to 5 V 0 to 100 %F.S.
Linearity :±0.2 %F.S. 10 to 100 %F.S.
Response frequency : DC to 4 kHz
Monitor display : 10-segment LED

Output : 0 to 5 V 0 to 100 %F.S.
Linearity : ±0.25 %F.S.10 to 100 %F.S.
Response frequency : DC to 10 kHz
Monitor display : 10-segment LED

100 to 240 VAC / 10 VA

± 15 VDC / 100 mA

VE series

↑ Click the each model for more details.

*F.S.（Full Scale）:Maximum measurement range of the VE sensors

Signal cables (sold separately)

●VL-1520 Cable length: 1.5 m (straight --- straight)
●VL-1521 Cable length: 1.5 m (right-angle --- straight )

Overview of Non-contact Thickness Meter and related equipments
