Roller Encoders

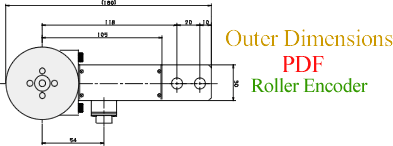

Note: The same model has the same outer dimensions despite the difference in numbers of output pulse.
| Model |
Number of output pulse |
File size | Update | |
|---|---|---|---|---|
| RP-704ZA | 100 | rp704za_02a_e.pdf | 33 kB | 2005.07.19 |
| RP-721 | 120, 1200 (for line speed measurement) 200 (for distance measurement) |
rp721_01a_e.pdf | 2005.07.19 | |
| RP-732 (discontinued) |
300, 750 | rp732_01a_e.pdf | 29 kB | 2005.07.19 |
| MP-162 (discontinued) |
120 | mp162_01a_e.pdf | 22 kB | 2005.07.19 |
| RP-7112 | 180, 1800 (for line speed measurement) 300, 3000 (for distance measurement) |
rp7112_53a_e.pdf | 29 kB | 2005.07.19 |
| RP-7522 (Discontinued) |
1500 (for line speed measurement) 2500 (for distance measurement) |
2005.07.19 | ||
| RP-7712 (discontinued) | 180, 1800 (for line speed measurement) 300, 3000 (for distance measurement) |
rp7712_53a_e.pdf | 17 kB | 2005.07.19 |
| RP-7400 | 120, 1200 (for line speed measurement) 200 (for distance measurement) |
rp7400_01a_e.pdf | 160 kB | 2014.02.03 |
Please click here to see the outer dimension of the reversible counter.
