TS-3100B |

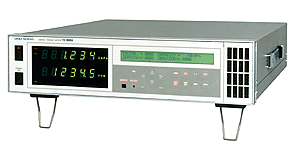

TS-3600B |
| Signal Input Section |
Torque Signal |
Type |
Phase-differential type
torque detectors |
| Zero value memory |
each for CW and CCW, with
auto zero function |
| N-0 compensation |
5 points each for CW and
CCW (can be set through RS-232C) |
| Revolution Signal |
Type |
REVO1 : sine wave input
(ex., MP-910 electroMagnetic Detector)
REVO2 : square wave input (duty cycle 1 : 0.75 to 1.5)
Internal : torque measurement signal (SIG 1) |
| Input range |
REVO1 : 10 Hz to 100 kHz,
amp. range 0.2 to 30 Vp-p
REVO2 : 1 Hz to 200 kHz, amp. range Hi : +3 to +15V, Lo : +0.6Vmax |
| P/R setup |
60, 120, 180, 240, 300,
or 360 P/R, selectable |
| Display unit |
1 or 10 r/min, selectable |
| Display Section |
Display Range |
Torque : 0 to ±99999
Rev. : 0 to ±99999 |
| Display Units |
Torque : mNm, Nm, kNm, deg, rad
Rev. : /m, /s, Hz |
| Indicator |
5-digit,
large green LED with 7-segment |
| Gate Time |
0.1 to 10.0s (set both
upper and lower display commonly) |
| Accuracy |
Torque : ±0.2 % FS ±1 count
Rev. : ±0.1 % |
| Setup & Calculation Section |
Output Power Calculation |
not provided
|
Output power (W) = torque (Nm) x rev.
speed (rdps)
1 ps = 0.7355 kW
1 hp = 0.7460 kW
Display units : mW, W, kW, ps, hp |
| Rotational Direction |
CW, CCW, EXT
|
| Zero Compensation |
10 points each forward and
backward by manual or automatic operation |
1 point
each for CW & CCW
manual or automatic operation |
| N-0 Compensation |
10 points each forward and
backward by manual or automatic operation |
10 points
each for CW & CCW
manual or automatic operation |
| Comparator |
not provided
|
2 channels
2 points of torque, r/min, and output power can be set
Response time : 0.004 to 10.000s |
| Absolute-value Measurement |
not provided
|
Display data, comparator data, and
analog output
(selectable, independently settable) |
| Peak Hold |
not provided
|
Torque, r/min or output power
(selectable)
Sampling time : 0.004 to 10.000s |
| Rotation |
Limit set |
r/min measurement upper
and lower limits setting |
| No. of pulse selection |
1 to 9999 P/R
|
| Gear Ratio |
not provided
|
±1 to
9999 / 1 to 9999
r/min before conversion can be displayed |
| Output Section |
Analog Voltage Output |
No. of output |
2 channels,
Ch-1 & Ch-2 |
| Level |
0 to ±10V/FS |
0 to ±10V/FS
0 to 20mA/FS
4 to 20mA/0 to +FS
(either voltage or current selectable) |
| Time constant |
63ms to
64s |
16ms to
64s |
| Linearity |
Torque : ±0.1 % ±5mV (after N-0 compensation
applied)
Rev. : ±0.1 % ±5mV (averaged over 1s period)
Output power : ±0.2 % ±5mV (averaged over 1s period) |
| Other Outputs |
not provided
|
Pulse output (1Vp-p)
TRQ1, TRQ2,
REVO1, REVO2 |
| GP-IB |
Option
|
Standard
|
| Remote Control Section |
Remote Control (input/output terminal
strip) |
IN CLR |
not provided |
CLR forces the display and output to
"0" |
| IN TRG |
not provided |
For EXT GATE,
the display is switched at the rising edge of the input |
| OUT TRG |
not provided |
For INT GATE,
the output rises simultaneously with the switching of the display |
| I/O CCW |
CW :
when opened
CCW : when shorted
INT ROTATION : CCW causes this terminal to be internally shorted. |
| OUT RDY |
not provided |
Indicates the measurement condition |
| OUT COMP (2CH) |
not provided |
Comparator setting output |
| Input section circuit |
Dry contact input (can
withstand 20V/20mA) |
| Output section circuit |
Dry contact output, 10Ω
max. when closed
10Ωmax. when closed, 500kΩmin. when opened
Absolute withstand voltage rating : 50V
Absolute withstand current rating : 100mA
Max. power : 5VA |
| General |
Power
supply |
90 to 130 or 180 to 250VAC, 50/60 Hz,
approx. 70VA |
90 to 130 or 180 to 250VAC, 50/60 Hz,
approx. 100VA |
| Operating
temperature |
0 to +40°C |
| Outer
dimensions |
441 (W) x 113 (H) x 537
(D) mm |
| Weight |
Approx. 11 kg |
