Encoder C-1-1 Measurement of rolling rate and rolling reduction of steel plate

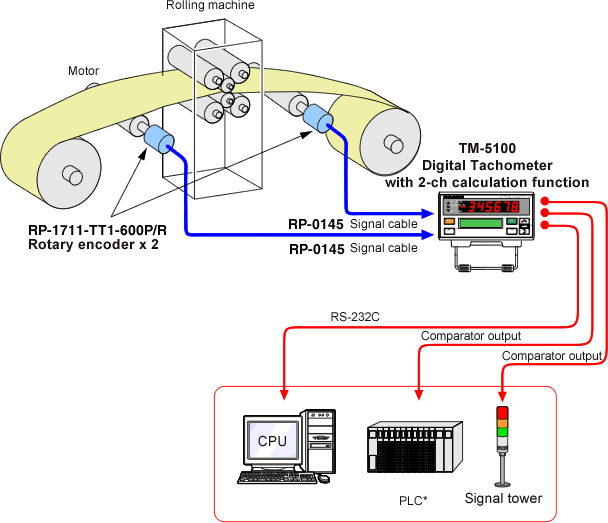

  • This application shows how to measure and calculate rolling rate and rolling reduction of steel plate by the number of rotational speed and roll diameter from two rotary encoders. Two rotary encoders are connected to rolling shafts before and after the rolling process of steel plate on a production line.
  • The TM-5100 Digital Tachometer with 2-ch calculation function can compensate the number of generated pulses and role diameters of rotary encoders to input appropriate values.
  • Connecting a PLC* to the TM-5100 via comparator output signal, this application can output command signal for cutting off and generate an alert to a signal tower.
  • Moreover, fluctuation of rolling rate and rolling reduction can be recorded continuously on external recording equipment via analog output.
  • The measured value can be stored on a PC using RS-232C interface.

* PLC: Programmable Logic Controller



  Model Product name
1 RP-1711-TT1-600P/R Rotary encoder
2 TM-5100 Digital Tachometer with 2-ch calculation function
3 RP-0145 Signal cable
