Gauge Application

Digital gauge Measurement of electronic industrial film
dimension D-3-1 Contact thickness measurement of film which is used in electronic industry with high accuracy

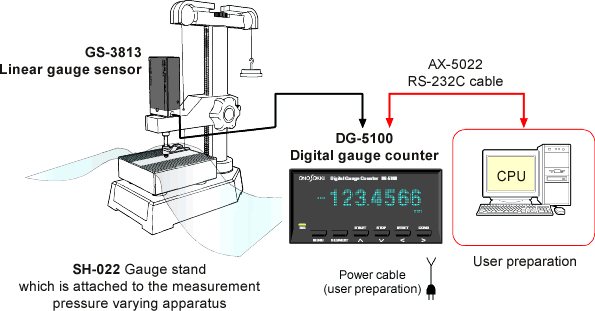

  • In the thickness measurement of polymer film which is used in electronic industry, using the linear gauge sensor with standard measurement pressure may affect the measurement result due to its distortion on the polymer film. (Detailed specification is fixed depending on the technical discussion.) As shown as the above application, measurement pressure can be made smaller by attaching a counterbalance to the linear gauge sensor. This way avoids being distorted on a polymer film.



  Model Product name
1 GS-3813 Linear gauge sensor
2 DG-5100 Digital gauge counter
3 SH-022 Gauge stand for HS series
