ONO SOKKI Application - Testing the load-strength of construction / civil engineering material 2 (multipoint measurement)

HOME >

Gauge aplication

Gauge Application

Digital gauge

Displacement measurement of thickness of sheet or housing material

dimension C-2-3

Testing the load-strength of construction / civil engineering material 2
(multipoint measurement)

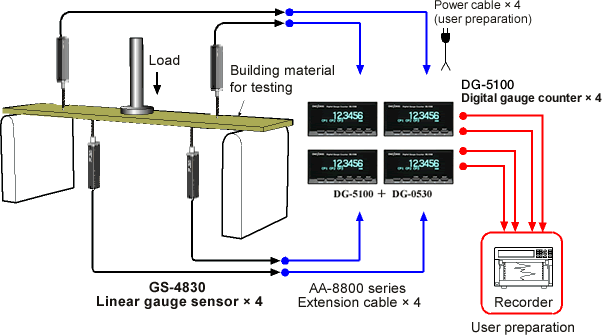

Applying load to the testing material makes it distorted in shape with its load. The strength characteristic of the testing material can be measured by recording the relationship of load-displacement to the recorder etc.

	Model	Product name
1	GS-4830	Linear gauge sensor
2	DG-5100	Digital gauge counter
3	AA-8800 series	Extension cable (5 meter to 30 meter)

	Product Brochures (PDF)
	Outer Dimensions (PDF)
