Gauge Application

Digital gauge Displacement measurement of automobile-related components
dimension C-1-1 Measuring the strength of automobile outer frame


  • This example shows how to measure the displacement at the time of measurement point with multi-channel, applying a certain load increasingly. The strength of the body can be measured with load-displacement relationship.

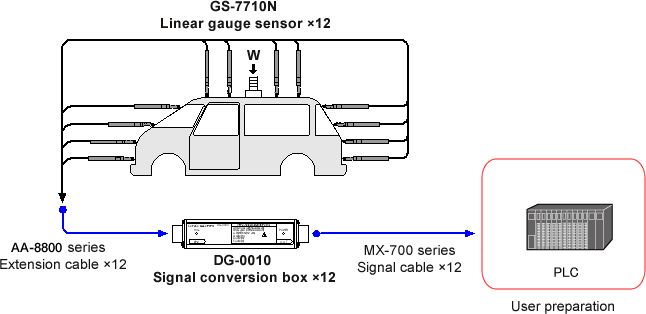

  • This configuration consists of the above models including sequencer and its counter board. The measurement is performed at the side of PLC. The DG-0010 outputs pulses of A and B phases with open collector waveform.


  Model Product name
1 GS-7710N Linear gauge sensor
2 DG-0010 Signal conversion box
3 AA-8800 series Extension cable ( 5 meter to 30 meter )
4 MX-700 series Signal cable ( 5 meter to 20 meter )
