FFT Q-1-9 |
Quality control of ABS motor |
-
The NP-3418 accelerometer with
built-in preamplifier detects vibration of the
bearing inside the rotating ABS motor and sends
a signal. The CF-4700 FFT comparator receives
the signal and performs FFT frequency analysis.
If the bearing has a defect such as abrasion,
the harmonic component increases. The CF-4700

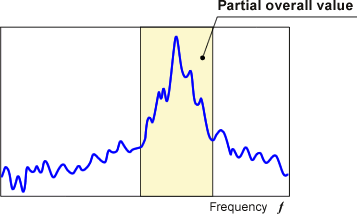

makes OK/NG judgment of the ABS motor depending
on the partial overall value on the power
spectrum of the harmonic component. Also OK/NG
judgment can be performed depending on the first
to third -order component of rotation on the
power spectrum detected by the peak hold
function while varying the rotating speed.
|
|
-
The block comparator function
makes OK/NG judgment by the block area (maximum
setup: 20 blocks) set in a certain frequency
range and level range. Six kinds of judgment methods (level, peak level, peak max, insideMax, partial overall or area rate of content) are available
for each block. Also the digital I/O function
enables control via PLC using comparator output.
-
The measurement results can be
stored into a PC via LAN or RS-232C interface.
|
|
Model |
Product name |
Remarks |
1 |
CF-4700 |
FFT comparator |
Input channel: 1ch, frequency range: 1 Hz
to 40 kHz, dynamic range: 110 dB |
2 |
NP-3418 |
Accelerometer with built-in preamplifier |
Compact and light weight type (approx.
1.9 g), frequency range: 0.8 Hz to 16
kHz ±3 dB, resonance frequency: approx.
40 kHz |
3 |
NP-0021 |
Miniature・BNC conversion connector |
Conversion cable between miniature
connector of the NP-0150 series signal
cable end and BNC connector |
|
|
|
