The averaging method of the averaging function of the VC-3100 Vibration Comparator.

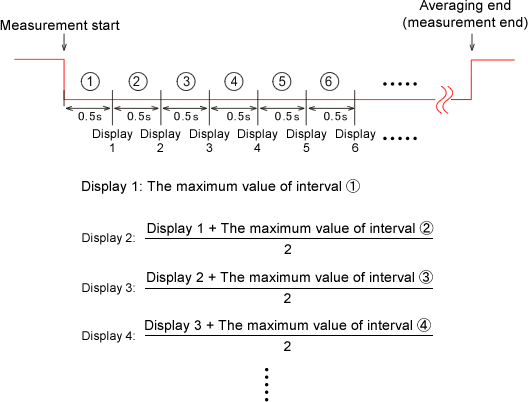

When the manual mode of the VC-3100 is selected, the averaging process is operated as follows with the number of averaging setting (4/8/16/23/64 times) and displayed.





When the automatic mode is selected, the averaging value of the gate signal input time is displayed. The averaging number cannot be set, but the averaging process is same as the manual mode. The averaging value is displayed on the measurement screen, not on the judgment result screen.

Revised:2008/08/18
