The sound level meter is provided 2 types of data memories; the manual memory and the block memory. To clear each data, operate the following procedure. Even if you clear one type of data, the other one cannot be cleared.
1. Clearing MANUAL memory data

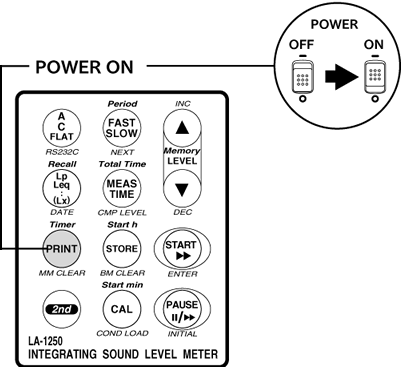

All the data stored in the manual memory can be cleared at one time by turning the power ON while pressing the panel switch [PRINT (MM CLEAR)].
[Notes]• The data stored in the manual memory cannot be cleared on address basis. They can be cleared at one time.
• Before clearing the stored data, print the necessary data or store them with other methods.
|
2. Clearing block memory data
All the data stored in the block memory can be cleared at one time by turning the power ON while pressing the panel switch [STORE (BM CLEAR)].
[Notes]• It takes approx. 3 seconds to complete the data clear operation. When the clear operation is completed, the sound level meter is restarted.
• The data stored in the block memory cannot be cleared on an address basis. They can be cleared at one time.
• Before clearing the stored data, print the necessary data or store them with other methods.
|
Revised:2007.06.18
