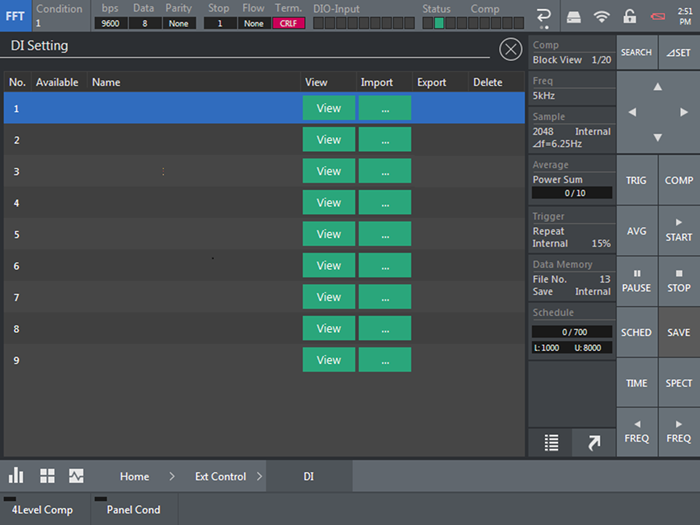

1. Tap HOME > Ext Control > DI in this order. The DI setting screen is opened.

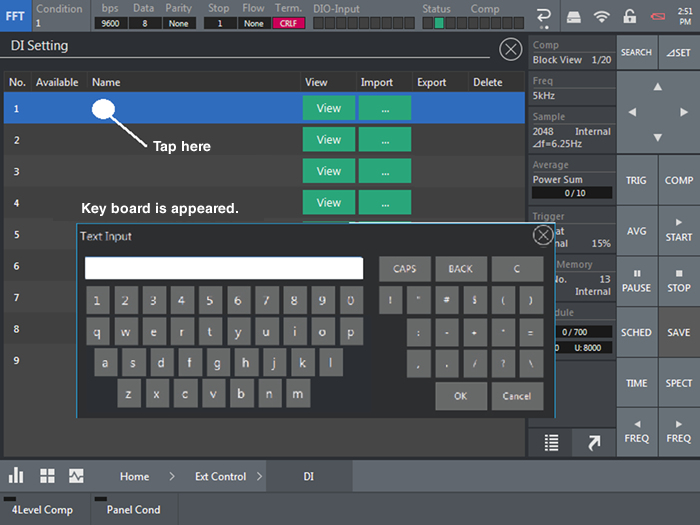

2. In this screen, register the name (label) of the DI, such as Average Start.

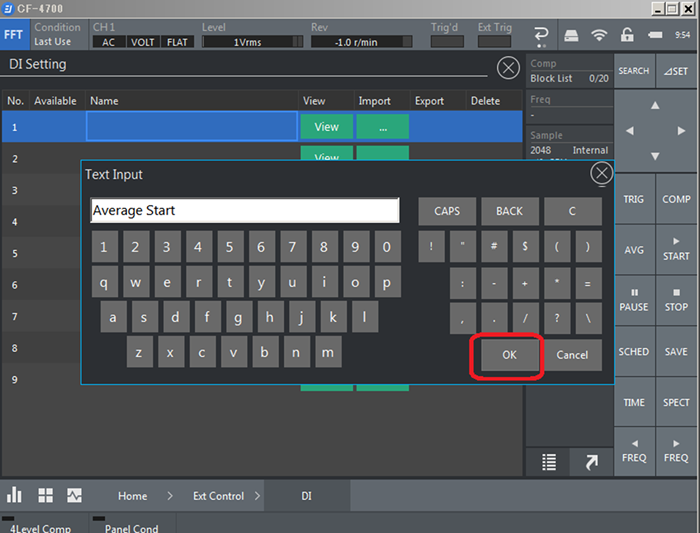

3. Input the name with the key board.
Tap OK to register the name.

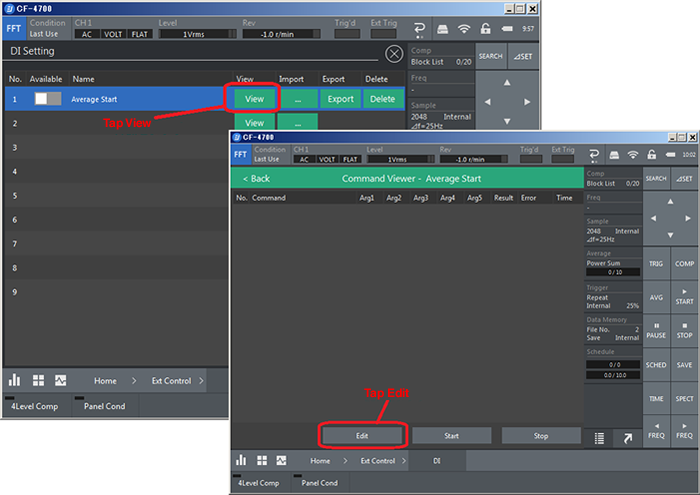

4. Next, register the command. Tap View to open the command register screen.
Tap edit.

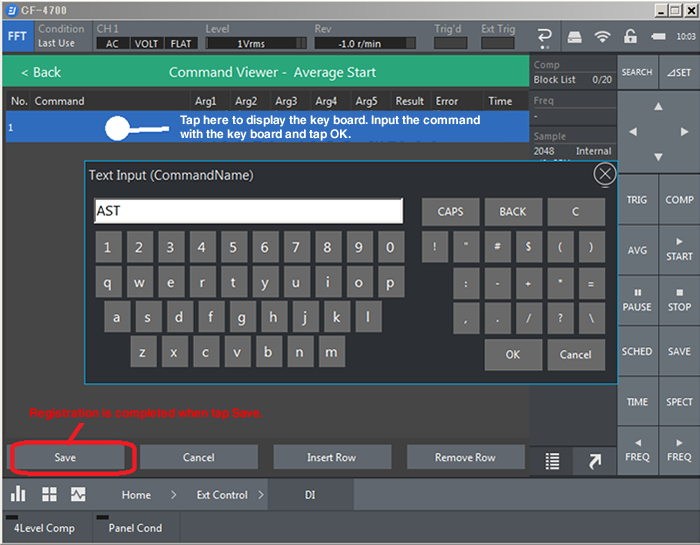

5. Register the "AST"(Average Start) for RS-232C in Average Start.
Tap Save in the end to complete the setting.

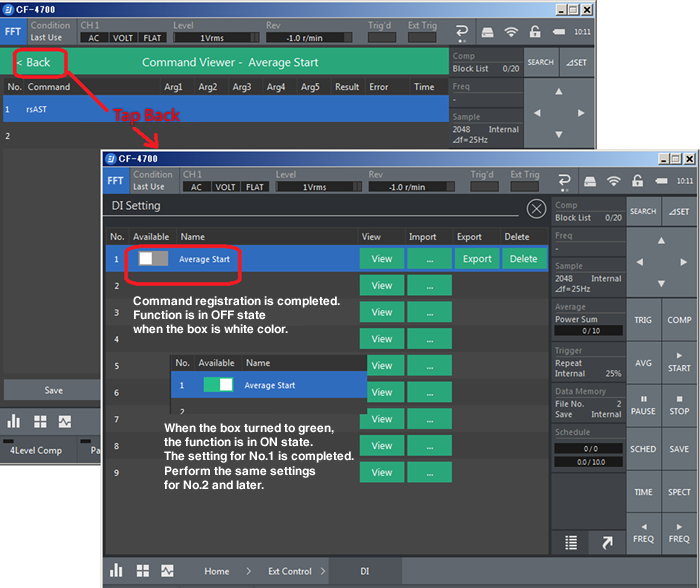

6. Tap Back to return to the DI Setting screen.
Revised:2017/10/19
