Elevator Speedometer
EC-2100 |
|
|
 |
The EC-2100 is a compact, light weight and battery-operated
handheld speedometer designed for use in elevator
adjustment, maintenance and inspection. With a wide
measurement range and high speed calculation, speed and
rotation of a high speed elevator can be measured.
It enables easy and accurate measurement only by pressing
the circumferential ring lightly to an elevator pulley or a
handrail of an elevator. Measured value can be easily read
on the red LCD even in a dark place. The operator can do an
inspection alone by fixing the EC-2100 main unit by a jig or
using the EC-0201 external detector (option).
As well as the buttons on the main unit, the measurement
values can be held by the external contact signal. The each
instantaneous value is displayed on the main unit. It
supports more safety work without worrying about the
displayed values.
Distance measurement is available by the EC-0202
(option). It measures moving distance within the specified
time. Moreover by adding the EC-0202 (option) and the
EC-0203 (option), the EC-2100 can measure actual moving
distance of an escalator after emergency stop operation. |
Features
-
Wide measurement range up to 2,000 m/min
and 20,000 r/min, saving calculation time with 10 ms.
Useful for measurement of a high speed elevator or
escalator.
-
Up to ten measurement results can
be stored to the main unit.
-
Analog output and pulse output functions
are provided as standard.
-
Maximum hold function to hold the maximum
value during measurement
-
Averaging function: Averaging of speed or
rotation speed values (selectable from 1 to 200.)
-
Auto power off function / display of
remaining battery level function
-
Distance measurement function (EC-0202
option): measurement of moving distance within the specified
time. Plus/minus display shows the rotation direction.
-
Remote measurement is available by the
external detector (EC-0201 option)
-
Also can be used as contact type handheld
tachometer by attaching the KS-300 (option) to the tip of
rotating object.
|
●

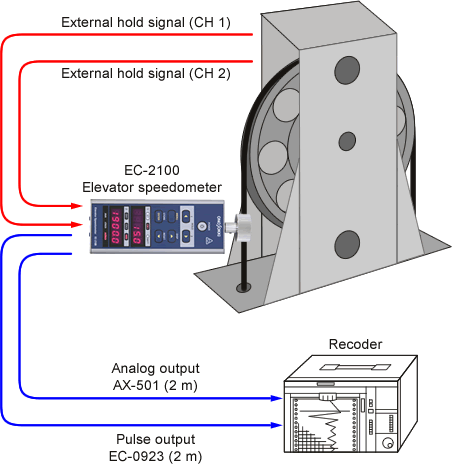

Speed measurement of an elevator
Make a measurement by pressing the circumferential
ring to a pulley of governor or a rope. The
instantaneous value of each channel is displayed by
using a hold switch [1] [2] on the main unit or
using the external hold signal.
-
Maximum
value measurement
The maximum value during measurement can be
held and displayed on lower screen by [DISP]
button.
-
Memory
function
The EC-2100 has memory function to store the
measurement results to the main unit.
The data of CH1, CH2 and MAX value are stored in
rotation measurement (m/min, r/min), and the
measurement channel, plus/minis and rotation
direction in distance measurement (mm). The
stored data can be read by [MENU] switch.
|
|
●
Moving distance measurement after emergency stop
operation
(Distance measurement function: EC-0202, option)
|
 |

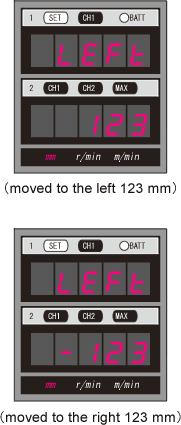

Example of measurement results When a leftward
movement of a handrail is set as +
 |
Moving distance after emergency stop can be measured
by pressing a circumferential ring to a handrail.
Plus/minus display shows the rotation direction.
-
Measurement
using the EC-0203 trigger unit (option)
Connect the EC-2100 to an escalator via the
EC-0203 trigger unit. Pushing the trigger button
brings the escalator to the emergency stop and
the speed measurement is started. When two
seconds have passed after the measurement ends,
the EC-2100 holds the measurement result and
prevents miscount.
-
Measurement
not using the trigger unit
The hold switch [1] [2] on the main unit starts
and stops measurement.
|
|
●
Outer/inner perimeter measurement
(Distance measurement function: EC-0202, option)
|
|
The EC-2100
Elevator speedometer can be used as the handheld
distance meter by installing the EC-0202
distance measurement function. The moving
distance can be measured and displayed by
pressing the circumferential ring to the
measurement object. Start and stop are operated
by the switches on the main unit. When the
circumferential ring passes the stop position,
the rotating direction setup enables correct
measurement. The auto stop
function* of the EC-2100 holds the measurement
result when two seconds have passed after the
movement of the circumferential ring ends.
*The auto stop function is
disabled by the modification of the EC-2100 main unit. |
|
Overview Specifications
■
EC-2100 Elevator Speedometer
|
Measurement section |
|
Measurement method |
Contact
type |
|
Measurement range |
Speed *1: 0.1 to 2,000.0
(m/min) or 1 to 6,500.0(f/min)
Rotation speed: 1 to 20,000 (r/min)
Distance (sold separately) *1: 0 to ±999 (mm) or 0 to 3.280
(feet)
*Distance measurement up to ±5000 mm or
9.999 feet is
available. However, measurement values more than ±999 mm
or ±3.280 feet is not guaranteed. |
|
Measurement accuracy |
±1 count |
|
Measurement time |
10 ms |
|
Display |
5-digit red LED × 2 |
|
Display update time |
100 ms |
|
Resolution *1 |
Speed: 0.1 (m/min) or 0.328 (f/min)
*2 , rotation
speed:0.1 (r/min), distance (sold separately): 1 (mm) or
0.001 (feet)
nSpeed and
rotation speed: 10 or more of averaging times |
|
Measurement unit *1 |
Speed: m/min or f/min, rotation speed: r/min, distance: mm or
feet (distance: option) |
|
Auto power off function |
A delay of three minutes after last operation
automatically lets the power off. |
|
Data hold function |
Data hold of each channel (CH 1, CH 2, Max value) |
|
Averaging function |
1 to 200 times (optionally setup) |
|
Memory function |
Up to ten measurement results can be stored to
the main unit. |
|
Analog output section |
|
Output signal |
Instantaneous value (output after averaging processing) |
|
Voltage range |
0 to 1 V/0 to F.S. |
|
Conversion method |
10-bit D/A conversion |
|
Linearity |
±1％ F.S. |
|
Output update time |
10 ms |
|
Output connector |
φ2.5 mm pin-jack |
|
Pulse output section |
|
Output method |
Transistor output (open collector) |
|
Voltage withstanding |
14 V |
|
Current |
20 mA or less |
|
The number of pulses |
600 pulses / rotation |
|
Logic |
Negative logic |
|
Pulse width |
Approx. 0.5 to 1.2 μs |
|
Output connector |
φ2.5 mm pin-jack |
|
Detector section |
|
The number of generated pulses |
150 pulses/ rotation, slit reflection method |
|
Light source |
Infrared-emitting diode |
|
Light receiving element |
Photodiode |
|
Allowable shaft load |
Radial:5kg, thrust:5kg |
|
Bearing life |
2×107 r/min･h (at the time of maximum
load within the specification) |
|
General specification |
|
Power supply |
Type AA battery x 3 pieces |
|
Battery life |
15 hours or more (continuous using at room temperature) |
|
Current consumption |
100ｍA max. (power voltage 4.5V) |
|
Operating temperature range |
0 to 45 °C |
|
Storage temperature range |
-10 to 60 °C |
|
Outer dimensions |
60（W）×162（L）×38（D）mm
(same as the EC-900) |
|
Weight |
Approx. 423 g (including batteries, not including the
circumferential ring) |
|
Accessories |
- External hold signal cable (1.4m) EC-0922 x 1 set (2 pieces)
- Carrying case EC-0925 x 1 piece
- Hexagonal wrench (opposite side:1.5mm) x 1 piece
- Type AA battery x 3 pieces
|
Note: When using the EC-2100, optional
circumferential ring (KS-400, 500, 0800) or optional rotating contact
tip (KS-300, EC-0924) is required.
*1: The measurement unit is selectable from mm
(m/min) or feet (f/min). Please specify the unit at the time
of order.
*2: Displaying to the first decimal point.
 Quick
operation procedure "How to use the EC-2100" (PDF)
Option
■
EC-0201 External detector
|
  |
External detector for
the EC-2100 Elevator speedometer. Remote operation using
signal cable (EC-0921, standard accessory) provides
safety measurement.
*The measurement operations
such as power ON and unit selection are performed on the
main unit. |
|
Detection section |
| The
number of generated pulsed |
150 pulse/rotation slit reflection method |
| Light
source |
Infrared-emitting diode |
| Light
receiving element |
Photodiode |
|
Allowable shaft load |
Radial:5 kg, thrust: 5 kg |
| Bearing
life |
2×107 r/min・h (at the time of maximum load
within the specification) |
|
General specification |
| Power
supply |
Supplied from the EC-2100 (uses the EC-0921 external signal
cable for the EC-0201) |
|
Operating temperature range |
0 to 45 °C |
| Storage
temperature range |
-10 to 60 °C |
| Outer
dimensions |
60（W）×76（L）×38（D）mm
with jig mounting hole (4-M4 depth 8)
(same as the EC-091) |
| weight |
Approx. 214 g (including batteries, not including
circumferential ring) |
|
Accessories |
External detector signal cable (5 m): EC-0921 x 1 piece
(connection for the EC-2100 and the EC-0201) |
■
EC-0202 Distance measurement function
It enables moving distance measurement of escalator
after emergency stop operation or a handrail by
mounted into the EC-2100 main unit.
|
■
EC-0203 Trigger unit
|
 |
Pushing the button on
the EC-0203 trigger unit brings an escalator emergency
stop and the EC-2100 starts measurement. When two
seconds have passed after the measurement ends, the
value is held to prevent miscount. |
|
Connection section |
| Connector |
Connection to the EC-2100 elevator speedometer CH 1
Connection cable: EC-0921 (5 m) or EC-0926 (1.5 m) |
| Terminal |
Connection to an escalator
Ｂ contact signal
push the button to be contact off.
A connection cable between an escalator emergency stop
device and the trigger unit: user preparation |
|
General specification |
| Outer dimensions |
50（W）×100（L）×47（D）mm |
| Accessories |
Mounting fixture x 2 pieces |
■
Accessories (option)
|
Circumferential ring
(wide type)
KS-400
 |
Circumferential ring
(narrow type)
KS-500
 |
Circumferential ring
(rubber coating wide type)
KS-0800
 |
|
Rotating contact tip
KS-300
 |
Relay shaft for rotating contact
tip
EC-0924
 |
External hold detection switch
EC-001A
 |
|
Model name |
Product name |
|
EC-0921 |
External
detector signal cable (5 m) (EC-2100 to EC-0201 or
EC-0203) |
|
EC-0922 |
External hold signal cable (1.4 m, 2 pieces to a set) |
|
AX-501 |
Analog output cable (2 m) |
|
EC-0923 |
Pulse output cable (2 m) |
|
EC-0925 |
Carrying
case |
|
EC-0926 |
Trigger unit cable (1.5 m) |
Comparison table of the EC-2100 and the EC-900
