Specification table for selecting Rotary Encoder

Outer Dimension (PDF)

• The model number of RP series Rotary Encoder

Model number of RP series Rotary Encoder is expressed in condensation codes representing functions and structures, with a few exceptions in expressions of models. (□ mark represents numeric character, ■ mark represents an alphabet.）

[In case of RP-1700 series]

	Classification	1: Bottom-mount type 3: Flange-mount type
	Input power supply + Z-phase option	1: AC 100 to 240 V input 2: DC 12 to 24 V input 3: AC 100 to 240 V input + Z-phase 4: DC 12 to 24 V input +Z-phase
	Signal output method	T: Totem pole O: Open collector C: Collector L: Line driver
	Connection type	T: Terminal board C: Connector
	Oil Seal	0: Oil seal not provided. 1: Oil seal provided.
	Number of output pulses



	Major classification	1: General purpose industrial type 3: Heat-resistant type 4: Compact type 5: Machine-tool type 7: Roller encoder type
	Sub classification	1: Bottom mount type 2: Bottom mount, dual-shaft type 3: Flange type (high-resolution type)
	Phase of output	1: Single phase type 2: 2-phase type
	Power supply	A: AC power supply type D: DC power supply type
	”Z” marked when zero mark output provided (Water-proof connector is not available.)
	”O” marked when open collector output provided.
	Output connection	T: Terminal strip type C: Standard connector type W: Water-proof connector type      (not available when zero mark output provided)
	Oil Seal	0: Oil seal not provided. 1: Oil seal provided.
	Number of output pulses

	Major classification	1: General purpose industrial type 3: Heat-resistant type 5: Machine-tool type 8: Built-in type
	Sub classification	1: Bottom mount type 3: Flange type (high-resolution type) 6:Water-proof type
	Version
	Phase of output	1: Single phase type 2: 2-phase type 3: Single phase + zero mark type 4: 2-phase + zero mark type
	Power supply	D: DC power supply type
	Signal output type	O: Open collector type L: Line driver type
	Output connection	T: Terminal strip type C: Standard connector type W: Water-proof connector type N: Direct cable type
	Oil Seal	0: Oil seal not provided. 1: Oil seal provided.
	Number of output pulses

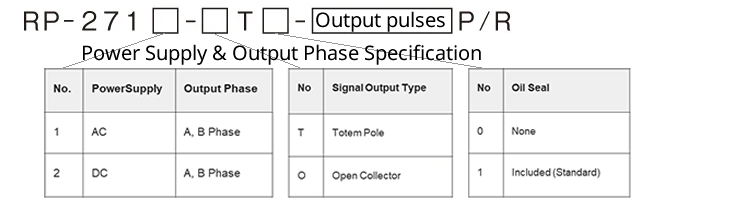

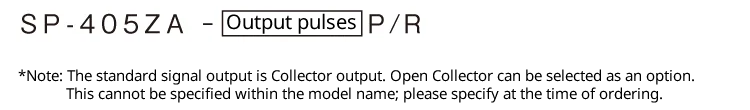

• Model* name and selection guide for RP series Rotary Encoder
   (specification table for selection)

Model number of RP series Rotary Encoder is expressed in condensation codes representing functions and structures, with a few exceptions in expressions of models. (□ mark represents numeric character, ■ mark represents an alphabet.）

*existing models as of Jun. 1, 2010.

Revised: 2011/09/30
