3D Sound Intensity Analysis Software
DS-0225
To DS-2000 Multi-Channel Data Station
Basic Terms for FFT Analysis

Screen data (3D bar graph)
3D bar graph

Screen data (3D mesh mapping)
3D mesh mapping

Sound Intensity is the acoustic energy (power) which passes through a specified area at a certain point in sound field in a specified time.

Measuring the energy in 3D achieves to presume the position of sound source, obtain amount of radiation from sound source and direction of flowing acoustic energy which is passing through the measuring surface.

The Sound Intensity Analysis Software DS-0225 consists of the “Sound Intensity Analysis Function” and “Sound Source Probing Function”. The former captures the flow of 3D sound and visualizes its directions and amount with 3D displays, and the latter is mainly used for measurement and analysis of the sound source position.



Features

  • 3D microphone probe (MI-6420) which is unique to Ono Sokki (four microphones are placed in each apex of a regular tetrahedron) can measure 3D vectors at one time.

        *In use of 3D SI (Sound Intensity) probe (Three times of measurement in total at each point are required when using 1D SI probe.)

  • Exclusive sound pressure and phase calibrator (MI-0620) keeps the microphone probe to be high accuracy at anytime, which corrects sound pressure sensitivity and phase difference between microphones.

  • The DS-0225 is Windows-based measurement / analysis software with simple operation and does not take long time to learn.

  • Not only the frequency domain for contour, color, and vector mappings of each but also 3D spatial mapping can be obtained.

  • Mapping display has a function to paste an image of the object under measurement.

  • Obtained data are collected in one folder for easy and safety backup

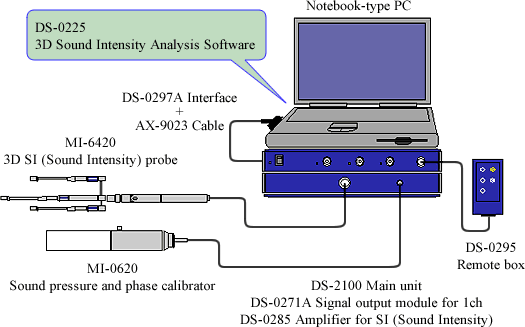

System configuration

Illustration (System configuration)



  Model / Name Q'ty
1 DS-2100 Main unit １
2 DS-0285 Sound Intensity Microphone Unit (4ch) １
3 DS-0271A Signal output module for 1ch (Built in DS-2100 main unit) １
4 DS-0297A ONO-LINK II: Communication module to connect DS-2100 main unit and PC. １
5 AX-9023 Cable for DS-0297A (2m) １
6 Please refer to [Specifications] (2) for details of PC requirements １
7 DS-0225 3D Sound Intensity Analysis Software １
8 MI-6420 3D Sound Intensity Probe １
9 MI-0620 Sound pressure and phase calibrator for MI-6420 １



Specifications

（１）Analysis unit (Assembled with No.1 to 5 the listed above )

Outer Dimensions 257（W）× 74（H）× 182（D）mm
Weight Approx. 2.3 kg
Power supply 12VDC (100 to 120VAC or 200 to 240VAC power supply adapter is supplied as standard.)
Power consumption 30W or less
Input connector Direct connection to MI-6420 and MI-0620 to DS-0285
Remote box DS-0295 Supplied as standard accessory of DS-2100



（２）PC requirements ( No.6 listed above)

CPU Pentium II 400MHz or more
Memory 128MB or more
HDD 4GB or more available space is required.
I/F PCMCIA TYPEII or PCI Bus is required to connect to DS-2100 main unit. USB connector or parallel port is required for the use of protection key.
OS Windows 2000, XP, Vista



（３）3D Sound Intensity Analysis Software (No.7 listed above)

Analysis method Cross-spectrum method by regular tetrahedron arranged method
Spectrum data type AI (Active Intensity), RI (Reactive Intensity), SP (Sound Pressure), PV (Particle Velocity), each spectrum
Measurable frequency range 40Hz to 5 kHz
Calibration function Sound pressure sensitivity, Phase difference between microphones
Measurement for distribution Up to 10 planes, 1000 measurement points / planes, measurable in XYZ directions, able to overlap up to 5 kHZ.
Distribution map Contour map, color map, vector map etc.



（４）Probe system (Assembled with No.8, 9 listed above)

A： 3D probe in use

Probe Regular tetrahedron arranged method MI-6420
Overall length: 560mm, weight 300g, cable length 5m as standard
Covered from 40Hz to 5kHz
   40Hz to 2kHz: 60mm(Gap length adapter in use)
   200Hz to 5kHz: 20mm (Gap length adapter in use)
Calibrator Sound pressure sensitivity correction and phase difference correction by frequency response (MI-0620)
  Outer dimensions 34(W)x39（H）x183(D)mm
  Weight：560g
  Output sound pressure : 94dB (400Hz)
  Frequency range : 40Hz to 5kHz

B：1D probe in use

Probe Array microphone (MI-6410)
Overall length: 570mm, weight: 160g, cable length: 5m as standard
Covered from 40Hz to 1kHz and 400Hz to 10kHz.
 Calibrator Sound pressure sensitivity correction and phase difference correction by frequency response (MI-0600)
Outer dimensions: 34（W）× 39（H）× 118（D）mm, weight 320g
Output sound pressure: 90dB (400Hz)
Frequency range: 40Hz to 10kHz

＊Notes
Frequency range may be changed depending on the probe type in used.

3D probe 60mm gap type…  40Hz to 2kHz
20 mm gap type…200Hz to 5 kHz
1D probe Measurement at low frequency…  40Hz to 1kHz
Measurement at high frequency…400Hz to 10kHz



Applications for Sound Intensity measurement

Automobile Industry

Home appliance / office automation equipment industry
  1. Measurement of exhaust sound from muffler
  2. Measurement of noise in vehicle
  3. Measurement of sound insulation in vehicle
  4. Measurement of noise from car air-conditioner
  5. Sound field measurement in vehicle from            audio-visual equipments
  1. Noise radiation measurement of FDD (floppy disc drive), HDD (hard disk drive), CD-ROM
  2. Noise measurement from compressor
  3. Measurement of noise generated from motor
  4. Sound field measurement from audio-visual   equipments
  5. Noise measurement of housing equipments
Industrial machinery field Architecture / housing field
  1. Sound source probing from general machine tools
  2. Noise measurement from constructing machines
  3. Noise measurement from medical equipments
  4. Noise measurement from generator
  1. Measurement of sound insulation in a room
  2. Measurement of room sound field
  3. Measurement of sound radiation by architectural model experiment
Environment, amenity, welfare
  1. Sound field measurement for environmental space
  2. Noise measurement for attractions
  3. Sound field measurement around sound insulating wall
  4. Application of environmental sound to an identification of sound source


*Windows® 2000, Windows® XP, and Microsoft® Excel are registered trademarks of Microsoft Corporation in the United States and other countries.
*Pentium® is a registered trademark of Intel Corporation in the United States and other countries.

Revised: 2006/09/19
