The CF-3650 (4ch)/3850 (8ch) is an all-in-one type portable
FFT analyzer with touch panel computer utilizing
simultaneous analysis and recording. The light weight and
all-in-one configuration makes using the unit on site easy
and efficient. The ease of portability and setup makes
CF-3650/CF-3850 provides more efficient measurement and
analysis achieving high accuracy in noise and vibration.
The CF-3650/CF-3850 features a variety of measurement
applications such as natural frequency measurement by
frequency response function, tracking analysis for
evaluating the dynamic characteristics of rotating machines
and engines, real-time octave analysis which is effective
for acoustical analysis and throughput disk function
enabling direct recording of waveform data to the built-in
hard disk drive of CF-3650/CF-3850 directly. |
|
In addition, 1/N real-time octave, octave tracking and field
balancing analyses can be performed by installing optional
software. Also, by using installed secondary processing software
such as OC-1300 Graph creating software and commercially
available software, you can make presentable report easily with
the measured and analyzed data. |
Features
The ease of portability and setup
makes the CF-3650/CF-3850 ideal for work on the jobsite
-
Simply plug the CF-3650/CF-3850 in and connect the sensors and
it is ready to take measurements. The light weight all-in-one
structure makes using the unit at a jobsite easy and efficient.
A battery backup ensures the data will never be lost in the
event of a power loss.
|
 |
15-inch color touch panel monitor providing direct operation
-
The CF-3650/CF-3850 comes equipped with a 15-inch color touch
panel monitor providing direct, intuitive operation and
eliminates the need of a keyboard and mouse.
|
 |
Combined with application software, the CF-3650/CF-3850
provides a wide array of analysis tools.
-
Noise and vibration measurements
-
Tracking analysis provides the
capability to evaluate rotating machines and engine
dynamic characteristics.
-
With real-time octave analysis,
acoustical analysis is provided.
-
Throughput disk function writes
waveform data directly onto the built-in hard disk.
-
/N real-time octave, octave tracking,
and field balancing analyses are available by adding
optional software.
|
 |
Wide 100 dB dynamic range with 24-bit A/D
-
CF-3650/CF-3850 series can perform on-site
recording of waveform simultaneously up to 8ch with 24 bit A/D.
As well as off-line analysis of the recorded data, advanced and
various analyses are possible such as multi-frequency range
analysis and fluctuation sound analysis via PC analysis software
or OS series.
-
*8ch recording: CF-3850 series
only
|
Easy data processing and efficient report creation. The
OS-2000 series and OC-1300 series expand the networks and
possibilities for future.
-
The time-axis data (dat. txt.) or recorded data (ORF)
of the CF-3650/CF-3850 can be freely edited and analyzed by the
OS-2000 series time-series data analysis software. Moreover, the
OC-1300 series multi-functioned graph creating software enables
efficient report creation with various graphs using the analysis
result of CF-3650/3850 or OS-2000 series.
|
Frequency response function
measurement
|
|
CF-3650T, CF-3650R
CF-3850T, CF-3850R
Resonance may cause not only chattering vibration in robots and
machine tools but also vibration and noise in automobiles and
home appliances. The most popular method for analyzing resonance
is measurement of the frequency response function of the object,
using an impulse hammer. Excitation by an impulse hammer is the
ideal choice of the on-site measurement for trouble shooting
because it reduces measurement time without the need to mount
the object on an exciter. It enables simultaneous processing of
up to 8ch*, 40 kHz range and 6,400 points of frequency analysis.
*8ch processing: CF-3850 series only
|
 |
| |
|
Tracking analysis
|
|
CF-3650T, CF-3850T
Rotating machinery such as engines, compressors and turbines
etc. must cover wide range of rotating speed from very low to
high speed. The most important issue is resonance caused by the
rotating speed of the machinery, in which the rotation frequency
is the same as the natural frequency of the rotating machinery’s
components (e.g. axles, gears and brackets.). In case of torsion
vibration in large power generators and the like, resonance can
cause serious accidents, creating vibration excitation energy
that exceeds the tolerance of the machinery, destroying it.
Rotation tracking analysis is the effective method to identify
the rotating speed at which resonance occurs in rotating
equipment, and which components and orders (multipliers) of the
rotating speed generate noise or vibration. |
 |
| |
|
Throughput disk function
|
|
CF-3650T, CF-3650R
CF-3850T, CF-3850R
The ability to directly store the
original signal waveform to the HDD of CF eliminates the needs
to save to a data collector then retrieve it. This also allows
you to store the data in non-degrading digital status. Use the
data recorded via the throughput disk function to analyze it on
the CF as well as the offline analysis at the PC on which DS or
DS installed. By changing the measurement and analysis
conditions allows for flexible analysis.
*8ch recording: CF-3850 series only
Note: Please consult us for details
of regarding the licensed version of DS-0221LA, DS-0222LA,
DS-0223LA, and other software. |
 |
|
■Maximum
recording time
| Frequency range |
CF-3650
series (4ch) |
CF-3850
series (8 ch) |
| 40 kHz |
87 minutes |
43 minutes |
| 20 kHz |
175 minutes |
87 minutes |
*Recording time at AD
conversion with 16-bit data only. |
| |
|
File export function
|
|
DS-0251A
Converts files saved by the
throughput disk function in ORF format into WAV, TXT, DADiSP,
MATLAB, UFF and other formats, and export them to other
applications for secondary analysis. |
| |
|
Real-time octave analysis
|
|
CF-3650R, CF-3850R
In order to solve the noise problem, the frequency analysis is
required. And octave analysis has long been used for frequency
analysis. An octave is a frequency with ratio of 1:2 to the
frequency that is, double the frequency. The human ear senses
sounds in geometric progressions to the frequency. A series of
octave bands based on 1 kHz has been standardized, and the
acoustic pressure level of each band. The octave band based on 1
kHz is called the 1/1 octave band, while the bands formed by
dividing into third are called the 1/3 octave bands. CF performs
real time octave analysis for 4 channels simultaneously.
|
 |
| |
|
1/N Real-time octave analysis (option)
|
|
DS-0224: Option
This software can analyze and
display the signal power of noise and vibration as 1/6, 1/12,
1/24 real-time octave band. Simultaneous analysis up to 2ch from
0.701 Hz to 17.20 kHz (1/24 octave) can be performed. Also the
DS-0224A can measure the following four values simultaneously;
maximum value, minimum value, power average value and power sum
value.
| 1/6 octave bands |
Ch1 to ch4 (CF-3650)
Ch1 to ch8( CF-3850) |
| 1/12, 1/24 octave bands |
Ch1 and ch2 (CF-3650)
Ch1, ch2, ch5 and ch6 (CF-3850) |
* DS-0223WA 1/1 and 1/3
real-time octave analysis software is required in the use of
DS-0224A. |
 |
| |
|
Octave tracking analysis (option)
|
|
DS-0243: Option
This octave tracking analysis software can analyze level trend
of every band for the rotating speed by input of rotation
information and retrieving of each fixed rotation as real time
octave analysis data. Note: DS-0223WA Real time 1/1 and 1/3
octave analysis software is required.
* DS-0223 1/1 and 1/3 real-time
octave analysis software is required in the use of DS-0243. |
 |
| |
|

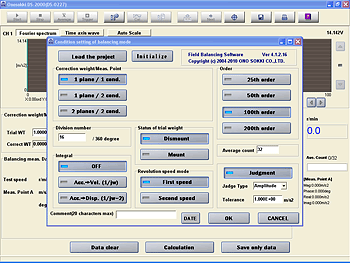

Field balancing software (option)
|
|
DS-0227: Option
The trouble of rotation machinery is caused most frequently by
Imbalanced phenomenon of rotating shaft. So the balancing
correction is required, but the conventional vector calculation
method with drawing takes some time and it makes on-site field
balancing difficult. The DS-0227A measures the unbalancing
phenomenon easily and efficiently by calculating and displaying
the results of 1-plane 1-condition, 1-plane 2-condition and
2-plane 2-condition. |
 |
Specification of the Portable FFT
Analyzer CF-3650/CF-3850
nInput section
|
Number
of input channels |
4-ch (CF-3650)
8-ch (CF-3850) |
|
Connector |
BNC (CO2) |
|
Impedance |
1 MΩ ± 0.5%, 100 pF or
less |
|
Format |
Single ended |
|
Coupling |
DC or AC （-3 dB 0.55 Hz
or less） |
| Current
supply for sensor |
2 mA/4 mA |
|
Acoustic filter |
A/C-weighted (standard)
・IEC 61672-1:2002 class1
・ANSI S1.4-1983 TYPE1
・JIS C1509-1:2005 Class1 |
|
Voltage range |
－40 to 20 dB Vrms
(every 10 dB steps, 7 ranges) |
| Absolute
maximum voltage |
AC 70 Vrms for
one minutes
(50 Hz） |
| Residual
offset |
-60 dB F.S. or less
(after calibration, 0 dB Vrms range) |
| Frequency
range |
DC to 40 kHz |
| Sampling
frequency |
32 kHz, 44.1 kHz, 48
kHz, 51.2 kHz, 64 kHz, 96 kHz, 102.4 kHz |
| Frequency
accuracy |
±50 ppm or less |
|
AD converter |
24-bit (ΔΣ type) |
| Dynamic
range |
110 dB or
more
(when analyzed at 40 kHz range, 0 dB Vrms range, 2048 points) |
| Harmonic
distortion |
-90 dB or
less (when input at 1 kHz, 0 dB Vrms range, 1 V0-p) |
| Aliasing |
-100 dB or less |
| Amplitude
flatness |
±0.3 dB or less |
| Full scale
accuracy |
±0.1 dB or less (when 1 kHz
input) |
| Amplitude
linearity |
0.0015 % (to F.S.) |
| Cross talk
between channels |
-100 dB or less （when 1 kHz
input） |
| Gain
accuracy between channels |
±0.3 dB or less (in
the same range） |
| Phase
accuracy between channels |
±0.4° or less (DC to 20
kHz), ±0.8° or less (20 kHz to 40 kHz) |
| External
sample input |
1 ch, AC/DC
selectable, ±12V, input impedance 100 kΩ, 0 to 300 kHz (with
out-of-band filter) 0.5 to 1024 P/R, The clock divider function
is available. Use the internal clock divider function when
exceeding 4 kHz of the frequency. |
| External
trigger input |
1 ch, AC/DC
selectable, ±12V, input impedance 100 kΩ, 0 to 300 kHz (with
out-of-band filter) |
nOutput Terminal for
Input Signal Monitoring section
|
Terminal for Input signal monitor |
3.5 Φstereo
jack:
CF-3650:for ch1/2, ch3/4
CF-3850:for ch5/6, ch7/8
1 Vrms F.S. ±1.0% (when 1 kHz, 1MΩ loaded) |
nPanel LED section
|
Power ON |
Green |
|
Low battery |
Red |
|
External trigger |
Green |
|
External sampling |
Green |
nTouch panel computer section
| CPU |
Intel®
AtomTM N270 1.6 GHz |
| Memory |
1 GB |
| HDD |
160 GB
(with a green access lamp) |
| Network |
10 BASE/100 BASE-TX/1000
BASE-T X1 |
| LCD |
15-inch, 1024 x 768 dots
XGA with brightness adjustment |
| Touch panel |
Resistance file method
(Windows multi-touch function is not available.) |
| USB I/F |
USB 2.0 (High Speed) ×2 |
| OS |
Microsoft
Windows 7 Professional 32-bit |
nGeneral
specification
|
Power requirement |
Approx. 16
VDC |
|
Operating temperature/humidity range |
+5 to +40
°C (humidity: 20 to 80 % RH, with no condensation) |
|
Storage temperature range |
-10 to +55
°C (including lithium ion secondary battery)
（humidity: 20
to 80 % RH, with no condensation） |
|
CE marking |
EN61010-1, EN61326-1 |
|
Cooling fan |
Not provided (natural air cooling) |
|
Countermeasure against instantaneous power failure |
Equipped with lithium-ion secondary battery |
|
Internal battery-charging circuit |
Provided |
|
Backup time for instantaneous power failure |
30 minutes max. |
|
Power consumption |
CF-3650：Approx. 110 VA (100 VAC, AC adapter is used.)
CF-3850：Approx. 130 VA (100 VAC, AC adapter is used.) |
|
Outer dimensions |
CF-3650：410(W)×314(H)×150(D) mm, not including protruded
section
CF-3850：410(W)×314(H)×180(D) mm, not including protruded
section) |
|
Weight |
CF-3650：Approx. 10 kg
CF-3850：Approx. 11.5 kg |
|
Accessories |
AC adapter,
Power cable for AC adapter, remote controller (with cable),
front panel protection cover, lithium ion secondary battery cell
(treatment against instantaneous power failure), instruction
manual |
nOutput
section (CF-0375 option)
|
Number of channels |
1 |
|
Terminal |
BNC |
|
Impedance |
50 Ω±10 % |
|
Voltage amplitude |
±10 mV to ±10 V |
|
Offset voltage |
±10 V |
|
Maximum output current |
10 mA |
|
Frequency range |
0 to 40 kHz |
|
Conversion rate |
32, 44.1, 48, 51.2, 102.4 kHz |
|
D/A converter |
24-bit (ΔΣ type) |
|
Signal type |
Sine, swept sine, pseudo random, random, impulse, time record
data |
|
THD |
Sine wave (when at 1 kHz, 1 Vo-p) -75 dB or less |
|
Applicable FFT analysis length |
64 to 16384 (power-of-two) |
|
Zoom analysis |
Applicable |
|
Voltage amplitude accuracy |
±0.2 dB or less (when at 1 kHz, 1 Vo-p, 1 MΩ load) |
|
Frequency accuracy |
±50 ppm or less |
|
Digital filter (smoothing filter) |
10th order ellipse (base band), 6th order ellipse (zoom) |
|
Digital filter (Octave band filter) |
6th order Butterworth (1/1, 1/3 octave) |
|
Pink filter |
Analog filter-3 dB/OCT. ±1.0 dB (prescribed at 20Hz to 20kHz) |
|
Burst function |
Provided (continuous/single-shot: 1 ms to 32 s / Number of burst
cycles: 1 to 32767) |
|
Taper function |
Provided (1 ms to 32 s), invalid when the burst function is ON. |
nAccessories
|
Instruction manual |
1 |
|
AC adapter |
1 |
|
Power cable for AC adapter |
1 |
|
Front panel protection cover |
1 |
|
Windows® 7 license |
1 (DVD-ROM) |
|
Lithium ion secondary battery cell |
1
(treatment against instantaneous power failure) |
nAC
adapter
|
Rated input voltage |
100 to 240
VAC |
|
Input frequency |
50/60 Hz |
|
Output voltage |
15 VDC |
|
Output current |
4 A |
|
Safety standard |
CE/UL/TUV/PSE |
nRemote
controller (DS-0395 option)
|
Operating switch |
5
(START/STOP/F1/F2/F3)
･F1 to F3 are use-defined switches. |
|
LED |
Green LED x
5 (displaying the status), red LED x 1 (displaying A/D over) |
|
Connection cable |
2 m |
|
External dimension |
45 (W) x 25
(H) x 117 (D) mm (not including protruded section) |
Basic
configurations
|
|
Configuration examples
| ■
|
Main
unit (CF-3650 or CF-3850) |
| ■ |
FFT
Analysis Software |
| ■ |
Throughput Disk Function/ File Export Function |
| ■ |
Accessories (AC adapter, battery pack, front panel
protection cover, instruction manual) |
| ■ |
Tracking Analysis Software |
|
|
|
 |
Configuration examples
| ■
|
Main
unit (CF-3650 or CF-3850) |
| ■ |
FFT
Analysis Software |
| ■ |
Throughput Disk Function/ File Export Function |
| ■ |
Accessories (AC adapter, battery pack, front panel
protection cover, instruction manual) |
| ■ |
1/1
and 1/3 real-time octave analysis software |
|
|
Option
nHardware option
|
CF-0375 |
1ch Signal
output module |
|
CC-0036A |
Hard
carrying case
*accommodates the main
unit of the CF-3650/CF-3850 and accessories. |
|
DS-0395 |
Remote
controller |
nSoftware option
(pre-installable software)
|
DS-0221WA |
FFT
Analysis |
|
DS-0222WA |
Tracking
Analysis |
|
DS-0223WA |
1/1 and 1/3
Real-time Octave Analysis |
|
DS-0224A |
1/N
Real-time Octave Analysis *The DS-0223WA is
required. |
|
DS-0227A |
Field
Balancing Software |
|
DS-0243A |
Octave
Tracking Analysis *The DS-0223WA is required. |
|
DS-0244A |
Campbell
Plot Function *The DS-0222WA is required. |
|
DS-0250WA |
Throughput
Disk Function |
|
DS-0251A |
File Export
Function (available to WAV, TXT, DADiSP, MATLAV, UFF)
*The DS-0250WA is required. |
Comparison table of the CF3600A/3800A and the CF3650/3850
Revised: 2011/04/28
|
