| Torque A-2-5 |
Measuring torque characteristic of brushless
motor |
|
-

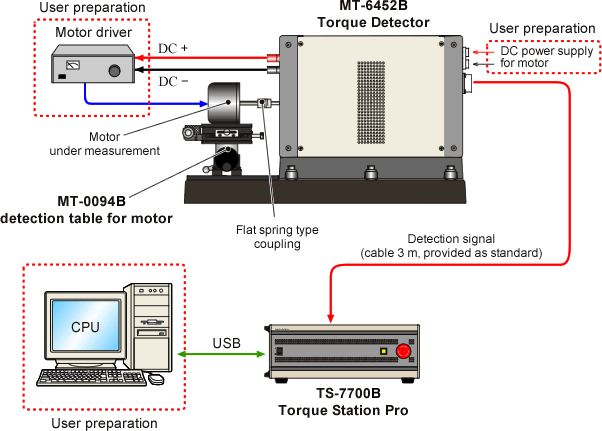

This example shows how to measure and
display as graphs the characteristics of brushless motor
of torque, rotational speed, current, voltage. The
efficiency performed by internal calculation also can be displayed.
-
The MT-6452Bcan measure voltage and current
of motor up to 50 VDC and 10 A. When current of a motor
exceeds 10 A, the MT-0710 series voltage/current detector
(sold separately) is required to use in combination with the
MT-6452B.
-
A power meter (user preparation) is
required for voltage/current measurement between
three-phase brushless motor and motor driver (drive
gear).
|
|
Model |
Product name |
|
TS-7700B |
Torque Station Pro. |
|
MT-6452B |
Torque detector equipped with a hysteresis brake |
|
MT-0094B |
Motor Support Stand |
|
MT-0710 |
Voltage/current detector |
|
|
V Block |
|
|
Flat spring type coupling |
|
