Rpm & Speed Application

Rpm & Speed No load non・contact measurement by Laser
rotation F-1-1 Measurement of motor rotation speed




  • Motor rotation speed and its fluctuation can be measured in this application. No need to touch the sensor to the object or affix a reflective mark. This non contact measurement allows to be used for inspection of finished products. You can check and evaluate the controlling performance by measuring directly the behavior at the driven side even with the motor to which the encoder is attached at the driving side.

  • Forward rotation and reverse rotation of the motor can also be determined.

  • Measurement range: 0 to ± 1,800 m / min
    Measurement range: 0 to ± 3,600 m / min (with LV - 0730, LV - 0731 installed)

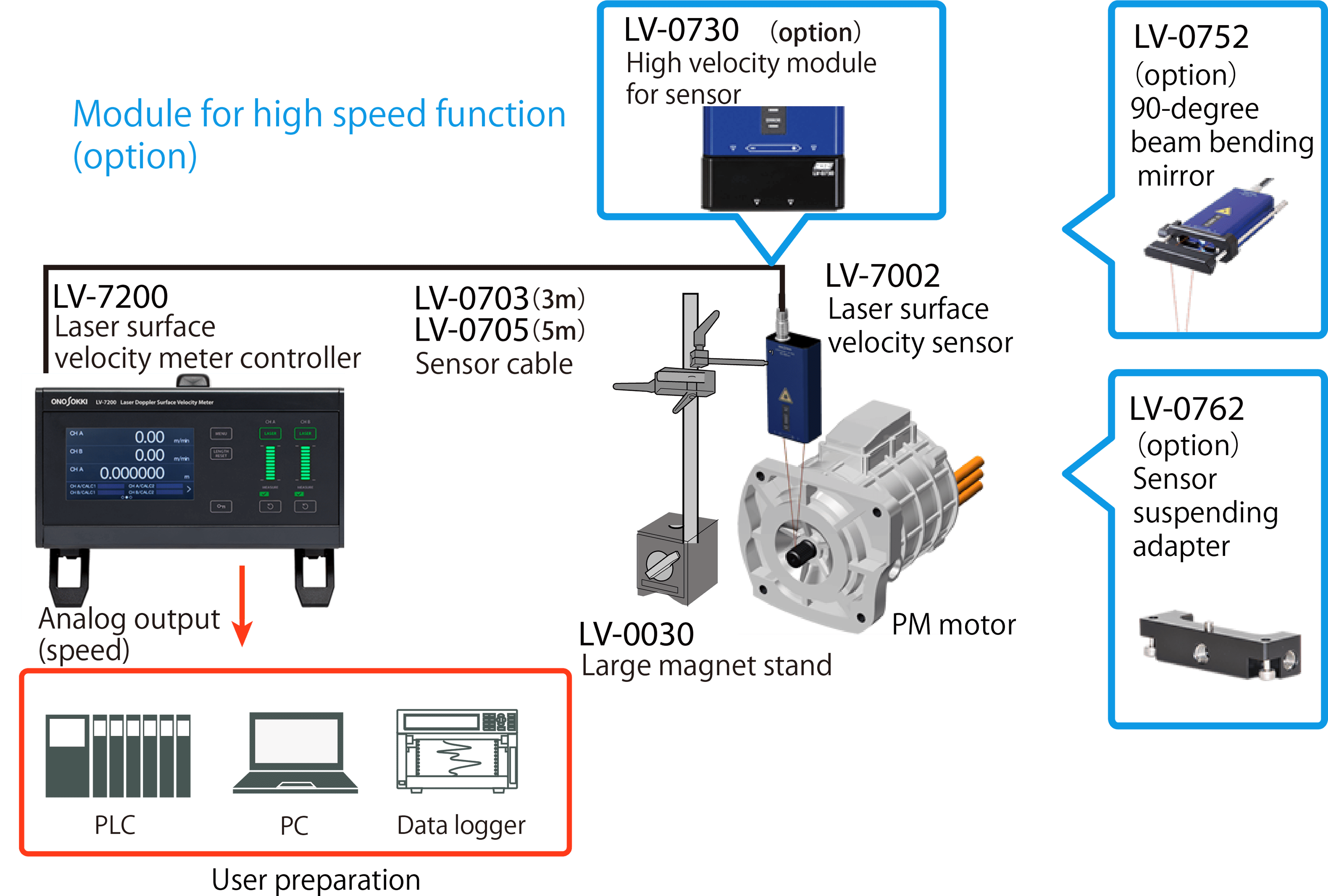

System configuration

Model name Product name Remarks
LV-7100 Laser surface velocity meter controller Detection speed range：0 to ±1800 m/min
LV-7002 Laser surface velocity sensor Center of detection distance：200 mm(from the end surface of the sensor bottom)
LV-0030 Large magnet stand Exclusive magnet stand for sensor suspension
LV-0703 Sensor connection cable for LV-7002 3m

LV-0730

LV-0731		 Module for high speed function (LV-0730: for sensor+LV-0731: for controller)
LV-0752 90-degree beam bending mirror
LV-0762 Sensor suspension adapter
