ONO SOKKI Application - Non-contact measurement of rotational speed using oil and heat proof detector

Rpm & Speed Application

Rpm & Speed

Measurement in specific environment

rotation A-3-1

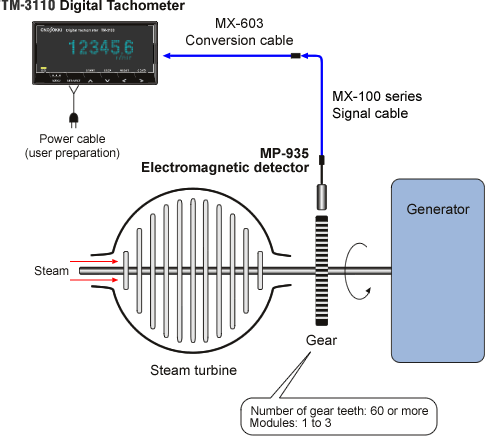

Non-contact measurement of rotational speed using oil and heat proof detector

Measurement range: approx. 300 r/min to 3500 r/min
Operating temperature range : -10 to +150°C
Please prepare gear teeth for rotational detection and its attachment.

Model	Product name
TM-3110	Digital Tachometer
MP-935	Electromagnetic detector
MX-100 series	Signal cable ( 1.5 meter to 20 meter ) *
MX-603	Conversion cable

* Maximum length of cable can be used depends on the environment of usage.
