Rpm & Speed Application

Rpm & Speed Measurement with optical detector

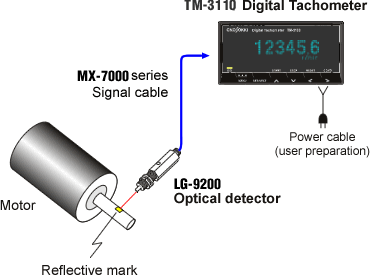

rotation A-2-1 Measuring the rotational speed with Non-contact type optical detector-1




  • The LG-9200, non-contact type optical detector, can measure the rotational speed simply by affixing a 12mm-quare reflective mark to rotating shaft of the object such as motor.
  • Detection distance: max. 20mm (when a reflective mark of 12mm-square is used.)



Model Product name
TM-3110 Digital Tachometer
LG-9200 Optical detector
MX-7000 series Signal cable ( 5 meter to 20 meter ) *

 * Maximum length of cable can be used depends on the environment of usage.
