ONO SOKKI - LA-1200 series High Function Sound Level Meter (Discontinued)

Replaced by LA-1411/1441/4441 Sound Level Meter

LA-1200 Series

Sound Level Meter
LA-1200 Series

	Product Brochures (PDF)
	Outer Dimensions (PDF)

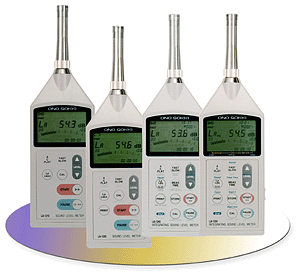

Photo (LA-1200 series Sound Level Meters)

The LA-1200 series (consisting of four models) achieves a wide linearity range of 85 dB and operates no less than 40 hours continuously with two type AA batteries.
The series includes models with memory, comparator and external control functions, which enables to capture sudden noise and synchronous operation of several meters.

LA-1200 is designed for operational easiness to be realized at the measurement site.

Features

Wide 85-dB linearity range
Long battery life, realizing approx. 40-hours continuous operation
Setup resume function for quick startup of measurement, with measurement condition storage
Key protection function to prevent erroneous or accidental operation
Comparator output and external control setting capability
Time scheduled operation for environmental measurements (on LA-1250)

LA-1210 Basic type sound level meter	LA-1220 Sound level meter with communications function
Instantaneous level of (L_A) and (L_P) Stationary noise measurement	RS-232C I/F added to LA-1210 Comparator output (optional)

LA-1240 Integrating sound level meter with memory function	LA-1250 Integrating sound level meter for environmental measurements
Equivalent continuous SPL (L_ep) and percentile SPL(L_x) Measurement data stored into built-in memory (300 addresses) Comparator output and external control (optional) Non-stationary noise measurement	Time scheduled measurements Back erase function to remove measurement data up to 10 seconds from the point Built-in memory (Manual: 300 addresses, Block: 14400 addresses) Sudden noise can be recorded using a combination of comparator function and a data recorder. (optional) External control (optional)

Specifications

Model			LA-1210	LA-1220	LA-1240	LA-1250
Applicable standard			JIS C1502 Type 2, IEC 60651 Type2, Draft IEC 61672-Aug 1998 Class2, ANSI S 1.4 Type2		JIS C1502 Type 2, IEC 60651 Type2, IEC 60804 Type 2, Draft IEC 61672-Aug 1998 Class2, ANSI S 1.4 Type2
Linearity range			85dB
Frequency range			20Hz to 8kHz
Frequency weighting			A, C, FLAT
Measurement range	JIS	A	27 to 130dB
		C	30 to 130dB
		FLAT	35 to 130dB
	IEC	A	26 to 140dB
		C	31 to 140dB
		FLAT	36 to 140dB
Measurement items	Instantaneous SPL (L_P)		Yes	Yes	Yes	Yes
	Equivalent continuous SPL (L_eq)				Yes	Yes
	Sound exposure level (L_AE)				Yes	Yes
	Percentile SPL (L_x)				Yes	Yes
	Maximum value (Max)		Yes	Yes	Yes	Yes
	Display update		Numeric: 1 s, Bar graph: 100 ms
Memory function	manual				300 addresses	300 addresses
	block					14400 addresses
Analog output			AC: 0.707Vrms, DC: 2.5V (F.S.) 0.5V/10dB
Power supply			Two type AA batteries
Battery life			approx. 40 hours (alkaline batteries), approx. 24 hours (manganese batteries)
Operating temperature range			-10 to +50°C
Operating humidity range			30 to 90%RH
Outer dimensions			approx. 70 x 240 x 30mm
Weight			approx. 260g
