Real-time 1/1, 1/3 Octave Analysis Software

Report Creation Software with
Simultaneous Measurement Function

XN-8000 series

Integrates Report Creation with Measurement Processing

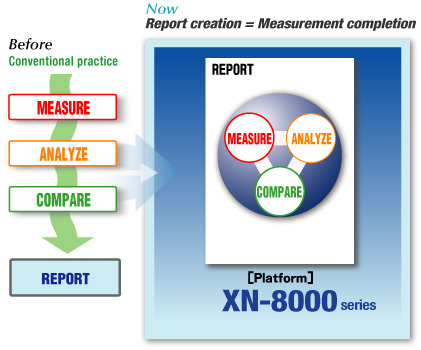

Conventionally, acoustic and sound measurement results have been summarized as a report after completion of measurement, analysis, comparison, and other processes. However, these working processes were complex and time-consuming as well as requiring significant skills of the person in charge. "XN-8000 series" is designed as platform software, using a new concept that is completely different from conventional practices. Simply performing the report creation procedure allows measurement and other processing series to be done in real time, while simultaneously confirming the completion image. XN-8000 series shortens working time remarkably, and supports the standardization of working procedures, thus contributing to improvements in workflow and productivity.

Applicable to Diverse Data Analysis

• Multi-application (simultaneous multiple analyses and recordings)
• Multi-frequency range
• FFT frequency analysis
• Frequency response analysis
• Real-time octave analysis
• Constant-width tracking analysis
• Constant-ratio tracking analysis
• Octave tracking analysis
• Phase tracking analysis

Processes multi-application on versatile analysis conditions simultaneously, realizing real-time measurement, analysis and comparison from a variety of angles.

Incorporates measurement, analysis, comparison, and other processes in "Report Creation", remarkably increasing working efficiency and reducing working time.

Reflects measurement data to graphs and charts in a report in real time, allowing measurement and output while confirming the completion image of the report.

No specialist skills are required for report creation and measurement work. Promotes standardization of tasks and improvements in workflow.

Features

XN-8000 series integrates conventional working processes, ranging from measurement with dedicated instruments to secondary data processing and report creation, into a single platform. XN-8000 series starts measurement in the report creation screen and then displays measurement results in real time as a completion image. During repetitive measurement, for example, it saves the trouble of creating reports one by one, significantly reducing working time.

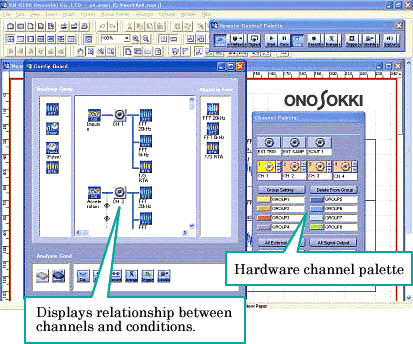

For sensor calibration, hardware setting, analysis function, etc., XN-8000 series displays various functions as icons in related manner. Measurement conditions become clear by visual check, and multiple items can be set and changed speedily. XN-8000 series saves the time of looking for target condition settings and items from many property settings.

In the past, graphs printed on sheets were overlapped or graphs were displayed on a personal computer in overlay mode in order to compare and analyze measurement waveforms. XN-8000 series makes it possible to overlay graphs with a suitable measurement scale simply by dragging a graph object onto another one.

XN-8000 series offers the task function to perform repetitive measurement efficiently when, for example, the working procedure is predetermined. The function makes it possible to perform semi- or full-automatic measurement easily and intuitively only by registering measurement conditions and report screens in advance and by arranging icons using the mouse according to the working procedure.

Recommended operating environment

OS	Windows ^® XP, Windows^® 2000
Connection with DS-2000	Desktop PC: PCI BUS, Notebook PC: PC card (CardBus) *Refer to the catalog of the DS-2000 Series Data Station for details.
CPU	Pentium® 4 3GHz or higher (or compatibles)
Display	1024 x 768(XGA) or higher
Memory	512MB or more
Hard disk	500MB or more

*Windows® is a registered trademark of Microsoft Corporation of the U.S.A. and other countries. Other company names and product names are trademarks or registered trademarks of each individual company.

XN-8000 series

Model	Product Name	Overview
XN-8100	Measurement platform (report function)	Main body of XN-8000 series. When analysis functions such as XN-0821 are added to the XN-8100, this enables hardware and analysis condition setting, multi-application and multifrequency range analysis, etc.
XN-0820	Tachometer function	Converts pulse signal into revolution. Used together with the XN-0821,XN-0822 and XN-0823.
XN-0821	FFT analysis function	FFT analysis zooming the signal are enabled in combination with XN-8100. Real-time analysis in multi-frequency range is enabled by setting the frequency range and other multiple analysis conditions. Constant-width tracking is enabled in combination with the XN-0820.
XN-0822	Order ratio analysis function	Rpm order ratio analysis (constant-ratio tracking) is enabled in combination with the XN-8100 and XN-0820.
XN-0823	Octave analysis function	1/1 or 1-/3 octave band analysis is enabled in combination with the XN-8100. Octave tracking is also enabled by adding the XN-0820.
XN-0850	Data recording and editing functions	Used to edit measurement data to perform repetitive analysis (off-line analysis) efficiently. Enables spectrum monitoring, time-axis statistical processing, sound board output, file export to WAV format, etc. as well as total display and analysis range specification of recorded data in combination with the XN-8100.
XN-0860	Task editing function	Semi- or full-automatic measurement is enabled by creating and correcting measurement procedures (tasks). The XN-0860 is not required to execute a created task.
XN-0870	Data file replaying function	Data file (ORF/WAV format) can be output (replayed) from sound card by synchronizing the start of the analysis at XN-8100. WAVE format of randam/sain waveform can be created.
	XN-8000 series viewer	Allows you to view a project file created by XN-8000 series and read the cursor value. If recorded data files (ORF format) are specified for the project file, waveforms can be played back allowing the use as a moving report. However, analysis condition setting, hardware connection, printing, and file saving cannot be performed.

XN-8000 series Combinations

	XN-8100	XN-0820	XN-0821	XN-0822	XN-0823	XN-0850
FFT analysis with XN-8000 series	○	-	○	-	-	-
FFT and tracking analysis with XN-8000 series	○	○	○	○	-	○
FFT and octave analysis with XN-8000 series	○	-	○	-	○	○

Applicable Measurement Unit

Model	Product Name	Overview
DS-2000	Multi-channel Data Station	Signal processing unit for sound and vibration measurement. When used together with the 2- or 4-channel unit, the number of channels can be extended to 32.
