O-Solution DS-5000 FAQ

(* If you cannot open it by clicking the following, press Ctrl + F5 to reload.)

How can the user-defined filter be registered?

The registration method differs between the frequency weighting characteristics filter and the noise removal filter.

  • Frequency weighting characteristics filter

    • It can be created by the user him/herself to apply a unique frequency weighting.

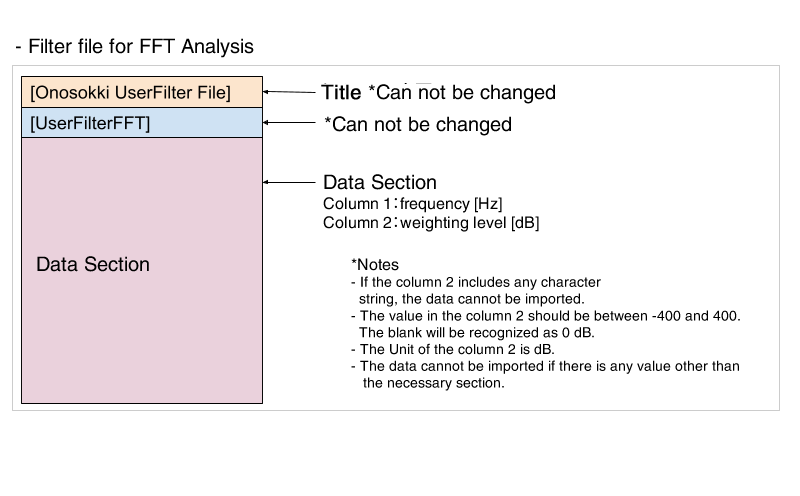

    The filter can be registered as follows. The file format is comma-separated format (CSV).

    *Reference File (Hand transmitted vibration measurement ISO5349)

    ・FFT Analysis: (fft_fwf_armvib_e.csv 14 KB)

    ・Octave Analysis: (octave_fwf_armvib_e.csv 15 KB)



Register the newly created file as follows.

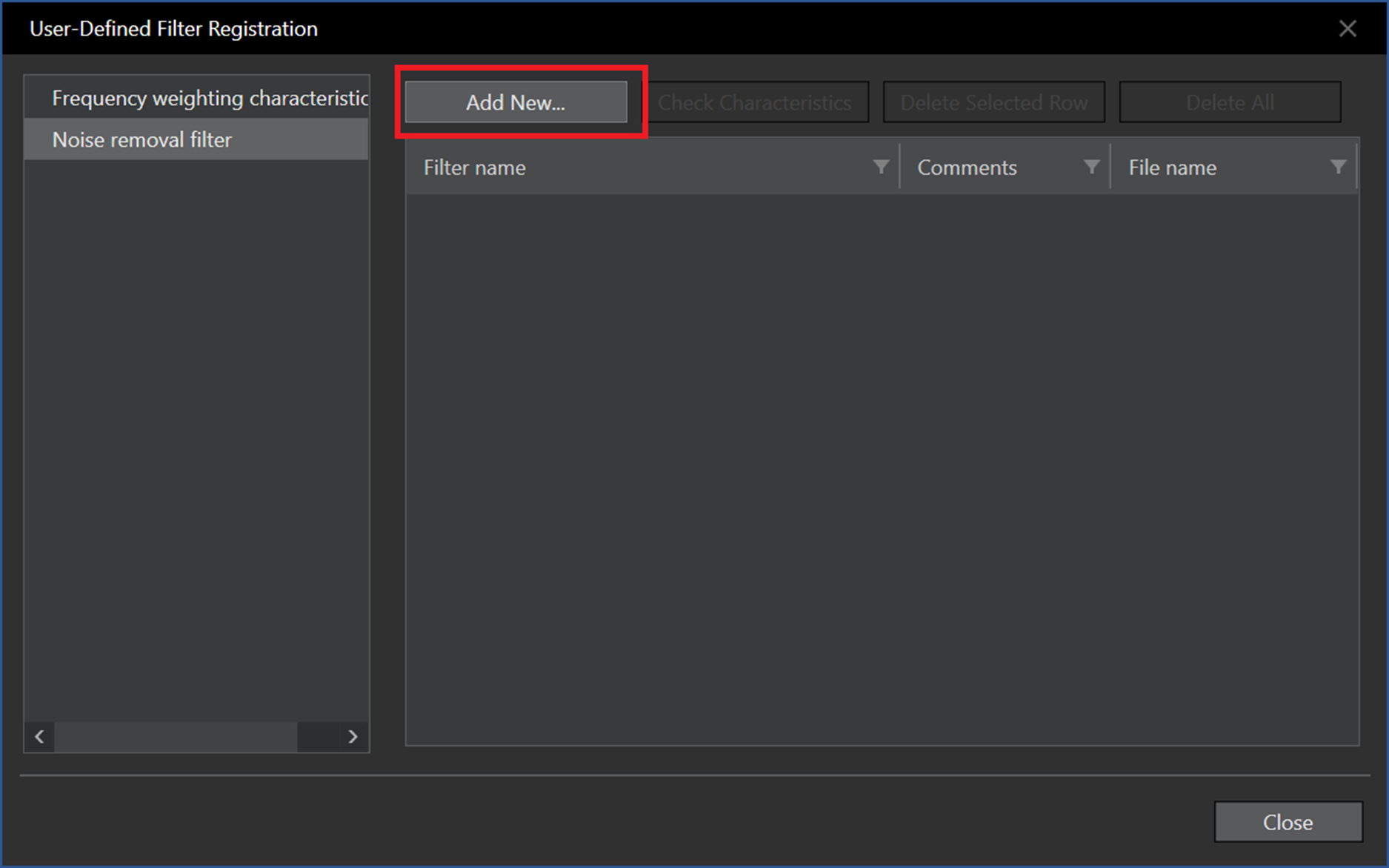

  1. Open [User-Defined Filter Registration] --> [Frequency weighting characteristics filter] and click [Add New...] button.

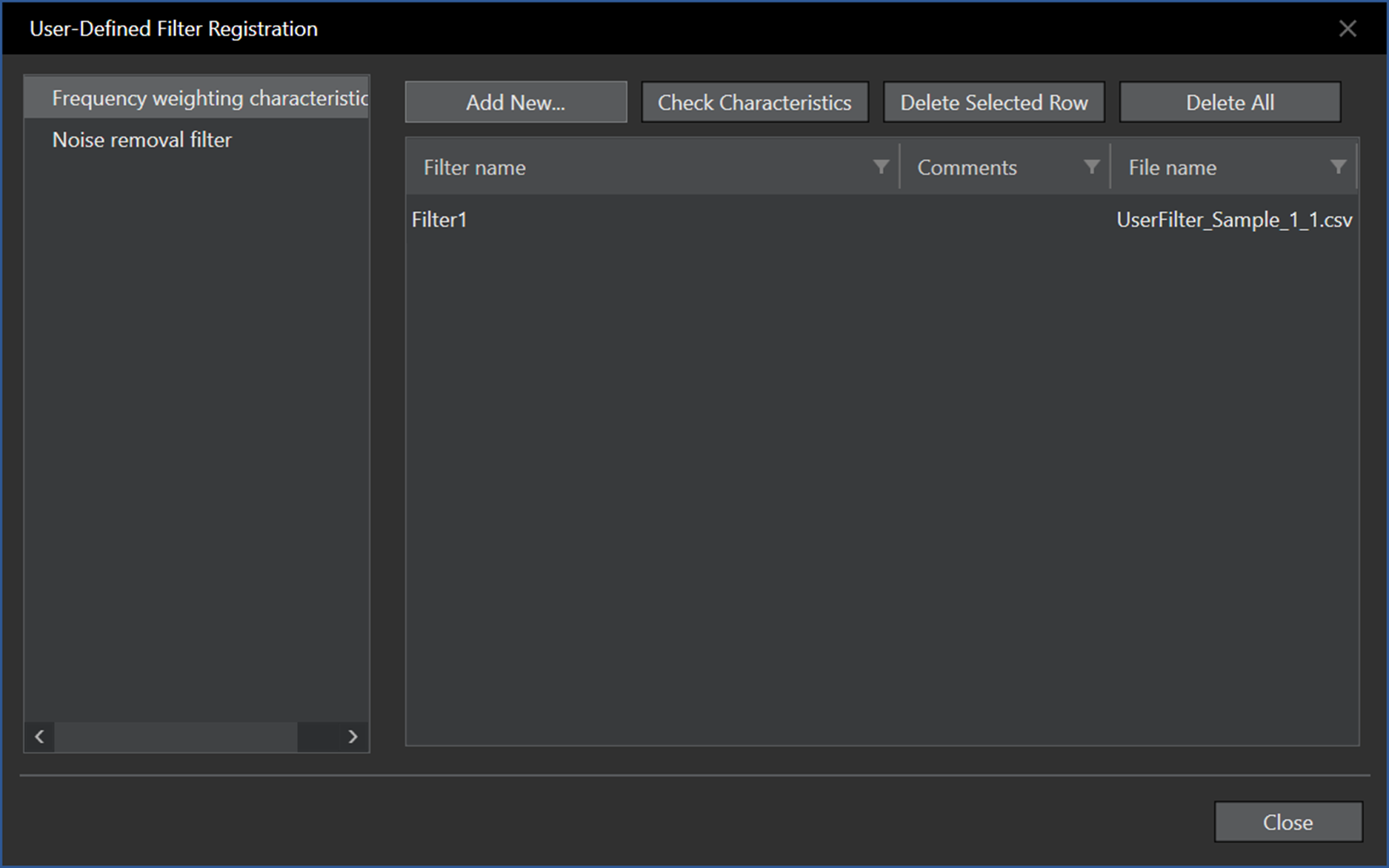

  2. The list of registered filters will be displayed as shown below.



  • Noise removal Filter

    • It can be used in order to remove (subtraction) noise components from the analysis results.
    An analysis result in TEXT format is required for creating a noise removal filter.

  1. Export an analysis result for noise removal filter in TEXT format from “Analysis Data Manager” or “Graph Window”
  2. Import the TEXT format file into the O-Solution and register in the Analysis Data Manager.

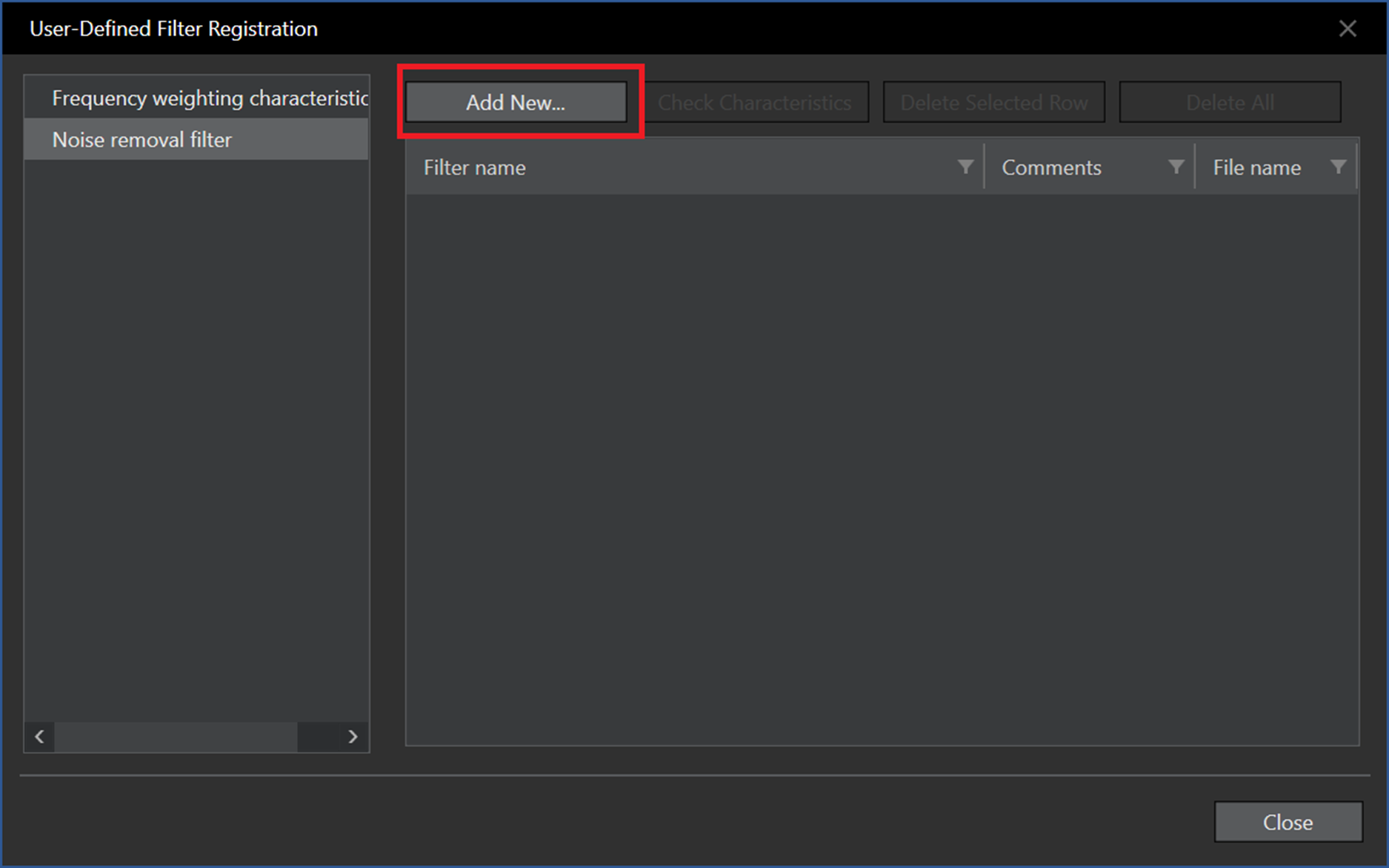

  3. Open [ User-Defined Filter Registration]--> [Noise removal filter] and click [Add New...].

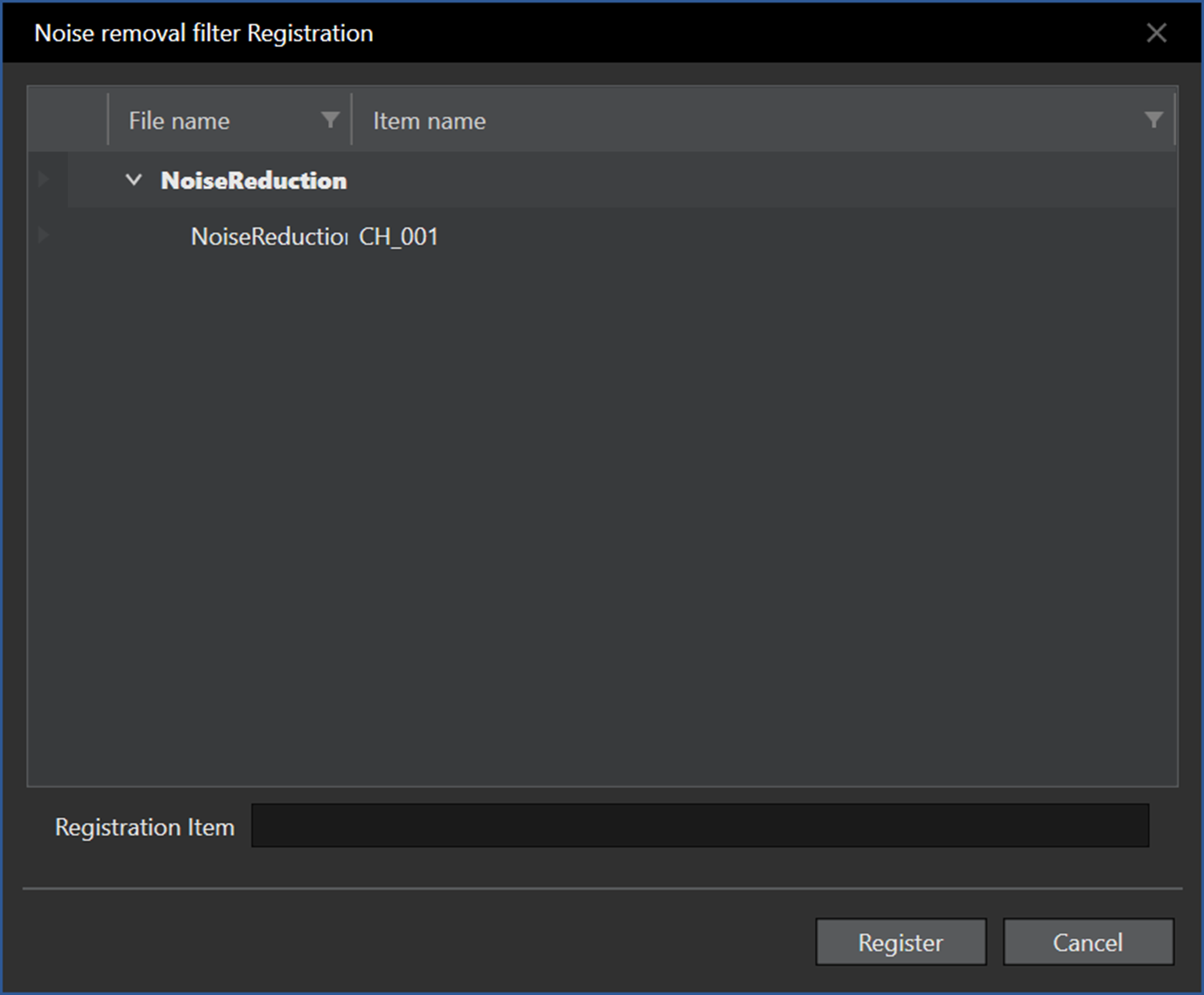

  4. The filter name registered in the Analysis Data Manager will be displayed. Select the filter and click [Register].

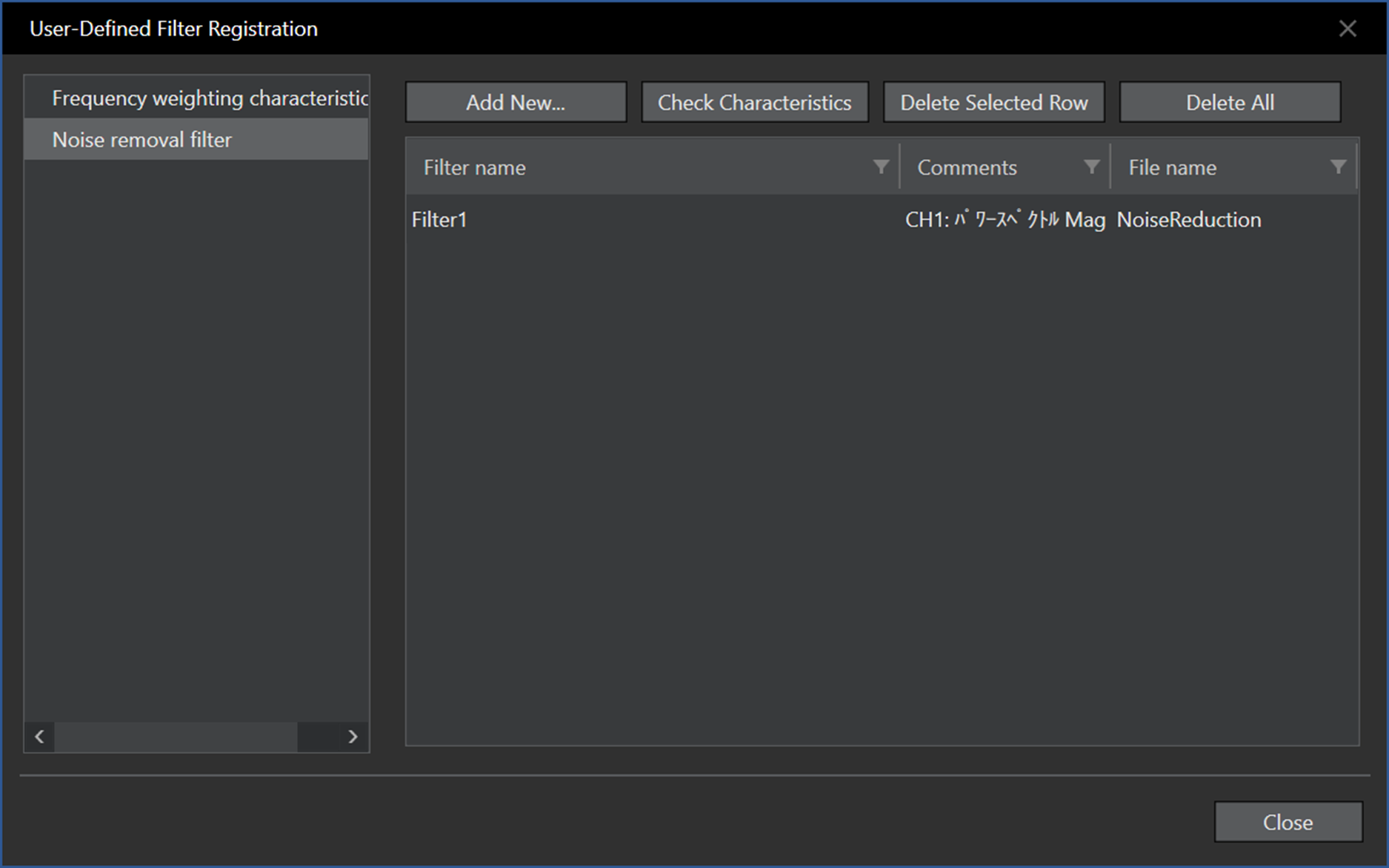

    5. Then, the registered filter is shown in the list.

Last updated:20211202
