Huge amount of time-series data are occurring in diverse fields of research and development as well as academic pursuits. There possibly are many cases where you cannot extract necessary partial data from file even if you want to utilize it. OS-1000 is a time-series data analysis software for solving such a problem. It mines only the required data from huge amount of time-series data, enables efficient speedy analysis and evaluation of data.
Features
Able to handle huge quantities of transient data regardless of the memory capacity of the PC
Extracting only data required for analysis and evaluation
Visualize numeric data using waveform
No stress in processing with its high-performance
Provided diverse analysis functions
Cleansed data can be used effectively with existing software
Incorporation with graph creating software, the OC-1000*, enables to get the most out of each function and create ideal environment for data utilization.
*click to move the page for the OC-1000.
Functions
Importing huge amount of time-series data lightly

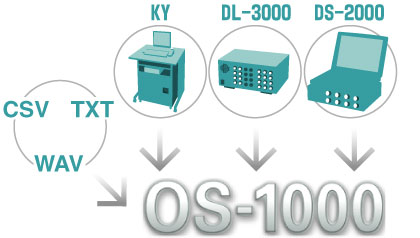

Processing of huge amount of time-series data requires huge memory capacity. The OS-1000 can handle huge quantities of data regardless of the memory capacity of the PC. Since the OS-1000 supports a variety of file formats, you can use it in any application environment.
Extracting only data required for analysis

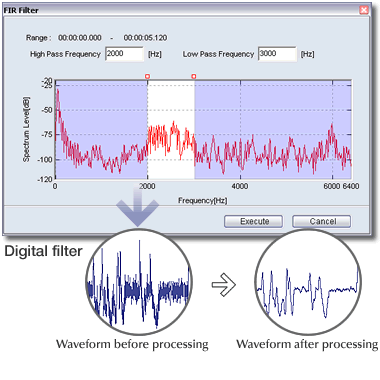

Huge quantities of measurement data contain a lot of data which are not required for analysis. By cleansing such data, the OS-1000 thins out unnecessary portions to extract only the required data. You can save the data as small-sized data files and process them efficiently using your secondary processing software.
Diverse analysis functions for accurate extraction of data
The OS-1000 is very useful for searching for required data contained in huge amount of data from the mathematical viewpoint. It is provided with the following optional functions:
-

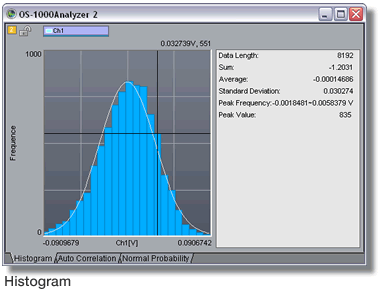

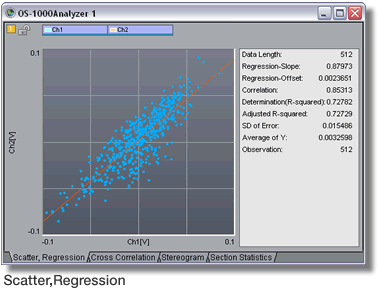

Histogram, regression analysis, standard deviation, and other statistical analysis functions.
- Power spectrum, frequency response function, and other frequency analysis functions.
Basic Specifications
Item |
Specifications |
Remarks |
Basic functions |
Waveform editing functions |
|
Numerical data display and editing functions |
|
Marker function |
|
Sound playback function |
The synchronization accuracy depends on the operating environment, processing conditions, and sampling frequency. |
Search function |
|
Sectional statistical function |
|
Printing function |
|
Display |
Number of tracks |
Up to 1000 tracks |
Number of display items |
Up to 10 items for each track |
Data import capacity |
Number of files |
Up to 10 files |
Number of channels |
Up to 512 channels |
Number of data items: |
Up to 5 hundred million points
・Number of channels × Number of records |
Sampling frequency |
0.01 Hz to 1MHz |
|
Data import format |
ASCII file format |
*.csv, *.txt, *.* |
Sound file format |
*.wav |
ORF file format |
*.orf |
AU-4100A file format |
*.inf |
DL-3000 file format |
*.dat |
FAMS-8000 file format |
*.thd, *.lhd |
KY-1000 file format |
*.trn, *.frz, *.ave, *.log, *.txt |
EAC Corporation
TAFFmat file format |
*.hdr ([DR-D, DR-F/M, DS] Series, GX-1,
LX-10/20, LX-110/120, es8) |
Hioki E.E. Corporation
MEMORY HiCODER file format |
*.mem(8861-50/8860-50,8861/8860,8855,8842/8841,8835-01,8826,8808/8807) |
Yokogawa Electric Corporation
WVF/WDF file format |
*wvf, *.wdf ([DL750, DL9000, DL7400, DL1700, DL1700E, DL1600] Series, WE7000, SL1400, SL1000) |
Data export format |
Comma-separated value format |
*.csv |
OC-1000 transfer function |
OC-1000(option)required |
Signal processing
functions(cleansing) |
Moving Average |
|
Simple Operation |
Extractor |
Time Calculus |
Operating Environment
The optimal CPU, memory, and hard disk specifications depend on the size of the data to be processed.
Item |
Specifications |
Remarks |
OS |
Microsoft® Windows®2000,Windows®XP |
- |
CPU |
Intel® Pentium®III 1 GHz or higher |
- |
Memory |
512 MB or more |
- |
Hard disk |
Available space of 500 MB or more |
- |
Display resolution |
1024 x 768 or higher |
1280 x 1024 recommended |
*OS-1000 is registered trademark or trademark of Ono Sokki., Ltd. in Japan.
*Windows® 2000,Windows® XP, Microsoft® are registered trademark or trademark of Microsoft Corporation in the United States and other countries.
*Intel® Pentium®are registered trademark of Intel Corporation in the United States and other countries.
*Specifications are subject to change without prior notice.
Revised: 2008/08/29
Outer appearance and specifications are subject to change without prior notice. |
