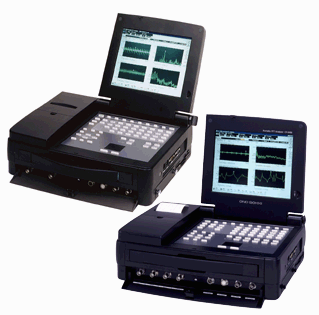

Portable FFT Analyzer
CF-3200/CF-3400 |
|
|
Compact & High Quality
|
The CF-3200/CF-3400 portable FFT analyzer provides on-site
precision measurement and analysis of sound and vibration that is both efficient
and hassle-free.
Its compact and lightweight attachér""""-case form makes it easy to transport
to and around the site. Such features as the battery/AC-powered operation
and built-in sensor amplifiers, mean that there are virtually no limitations
on the location for analysis.
There is also a wide choice of application software available for the analyzer,
which support a variety of measurement tasks. These include tracking analysis
to evaluate the dynamic characteristics of rotary machines and engines,
measurement of natural frequencies using frequency-response functions, precision
diagnosis and field balancing of factory equipment, and real-time octave
analysis that has proved very effective in sound analysis. |
Features
-
Compact and lightweight at only 6kg / 6.5 kg for better portability
-
Operates on either an AC power supply or a battery
-
Built-in sensor amplifier (for acceleration pickups, constant current
supply type microphones, and rotation sensors)
-
Built-in thermal printer
-
A highly luminous, 10.4-in. TFT color LCD panel as the display
-
External keyboard and mouse input provided.
-
Built-in large-capacity flash memory (non-volatile block, time record
memory) and floppy drive
-
Built-in PCMCIA interface
Specifications Summary
|
Model |
CF-3200 |
CF-3400 |
| Processing Functions |
time domain |
Time-axis waveform,
orbit |
| amplitude domain |
PDF, CDF |
| frequency domain |
Power spectrum,
linear power spectrum, phase spectrum, cross spectrum, FRF,
coherence function |
| Input Section |
Input channels |
2 channels |
4 channels |
| Configuration |
Single-ended |
| Voltage range |
10mVr to 10.0Vr |
| A/D conversion |
16 bits (successive
comparison type) |
| Dynamic range |
75dB or more |
| Amplitude flatness |
±0.015% F.S |
| Cross talk |
-100 dB or less |
| External sampling input |
±10V (AC, DC selectable)
max. input frequency : 25.6 kHz |
| Analysis Section |
Frequency range |
1Hz to 40kHz |
| Frequency accuracy |
±0.005% of the reading value |
| Frequency resolution |
25, 50, 100,
200, 400, 800, 1600 lines, selectable |
| Window Functions |
Rectangular,
Hanning, flat-top, force, exponential |
| Averaging |
CF-3200 : 20
kHz or more
CF-3400 : 10 kHz or more |
| FFT processing |
32-bit floating
point (IEEE single-precision format) |
| Tracking Analysis
Function |
Order Analysis range |
6.25th, 12.5th,
25th, 50th, 100th, 200th, 400th |
Measuring rpm range
(at 1 P/R input) |
6.25th:
50 to 160,000 r/min
12.5th: 50 to 80,000 r/min
25th: 50 to 40,000 r/min
50th: 50 to 20,000 r/min
100th: 50 to 10,000 r/min
200th: 50 to 5,000 r/min
400th: 50 to 2,500 r/min |
| No. of Tracking points |
200 or 400, selectable |
| Memory Section |
Built-in memory |
Screen memory,
panel condition memory |
| Time record |
CF-3200 : 1
M word /ch
CF-3400 : 512 k word/ch |
| Floppy disc drive |
3.5 inch FDD
x 1 drive |
| Display Section |
Display |
10.4-inch TFT
color LCD |
| Resolution |
800 x 600 dots
(256 colors) |
| Modes |
Single, dual,
triple and quadruple screen, overlaid display, list display, waterfall display |
| General |
Power supply |
100 to 240VAC,
approx. 50VA |
| Battery |
Lithium-ion
secondary cell, 4500mAh |
| Operating
temperature |
0 to +40°C |
| Outer dimensions |
408 (W) x 280
(D) x 125 (H) mm |
| Weight |
Approx. 6 kg |
Approx. 6.5 kg |
Real Time Octave Analysis Function (option CF-0321)
|
Model |
CF-3200 |
CF-3400 |
| Function |
Available |
Available only for 2 channels |
| Type |
1/1 and 1/3 octave |
Field Balancing Function (option CF-0320)
|
Model |
CF-3200 |
CF-3400 |
| Function |
Available |
Available only for 2 channels |
| Mode |
1 or 2-plane,
simultaneous measurement of 2-plane |
Signal Pre-processing Section (option CF-0360)
|
Model |
CF-3200 |
CF-3400 |
| Function |
Available*1 |
Not available |
| Filters |
high-pass |
10 Hz, 1 kHz,
10 kHz |
| low-pass |
100 Hz, 1 kHz,
10 kHz |
| Envelope converter |
Absolute value
detection |
| Integrator |
Single-integral,
double-integral |
| Pre-processing gain |
x 1, x 10,
x 100 pre-processing can be set for each channel |
| Headphone output |
Outputs the
pre-processed analog signal of CH-1 |
| Rotation diagnostic
function |
Calculation
of rotation frequency, bearing flaw frequency and gear mesh frequency |
Signal Output Section (option CF-0361)
|
Model |
CF-3200 |
CF-3400 |
| Function |
Available*1 |
Not available |
| Type |
Sine, swept sine, pseudorandom, random, periodic
random, impulse, linear sine sweep |
*1 : CF-0360 pre-processing function and CF-0361 signal
output cannot installed together
|
