Measurement range |
0.3 to 500.0 km/h |
|
Accuracy |
Speed:±0.1km/h or
less
Distance:±0.05% or less
(When measurement distance is at 300m or more, speed is at 30km/h or more,
and eight or more satellites are acquired.) |
|
Analog output section |
Speed |
0 to +10.0V / 0 to 500km/h |
|
Conversion method |
16 bit D/A conversion |
|
Linearity |
±0.2% / F.S. or less |
|
Response |
10ms or less |
| Update
rate |
100Hz |
|
Pulse output section |
Resolution |
1, 5, 10mm / pulse |
| Output
level |
TTL |
|
Signal input section |
BRAKE signal, tape switch
signal (no-voltage contact),
external trigger signal |
|
Signal output section |
Start / stop: pulse TTL level |
|
Interface |
USB 2.0 |
|
GPS antenna |
Type |
Patch antenna |
|
Attaching method |
Magnet attachment |
| Cable
length |
5m |
| Outer
dimensions |
30.4(W) × 35.5(H) × 11.7(D) mm
(not including cable) |
| Weight |
Approx. 100g (including cable) |
|
Display section |
Power
display lamp |
LED display (green) |
|
Condition display lamp |
LED display (red, green) |
|
Satellite display lamp |
LED display (green) |
|
External display unit |
Display device |
LED with 7-segment (red) |
|
Display update time |
0.36s |
|
Function |
Speed display, distance
display, speed hold display |
| Number
of display digit |
Distance: 6-digit
Speed: 4-digit |
|
Display range |
Distance:0.00 to 9999.99m
Speed:0.0 to 500.0km/h |
| Outer
dimensions |
180(W) × 66(H) × 50(D)mm |
| Weight |
Approx 450g (including cable) |
|
General specifications |
Power
requirement |
9 to 32 VDC (power consumption:
maximum at 12VA) |
|
Operating temperature range |
0 to +50°C |
|
Storage temperature range |
-10 to +60°C |
| Outer
dimensions |
271(W) × 47(H) × 216(D)mm (main
unit)
45(W) × 115(H) × 20(D)mm (remote box) |
| Weight |
Approx. 1.3kg (main unit)
Approx. 200g (including remote box and cable) |
|

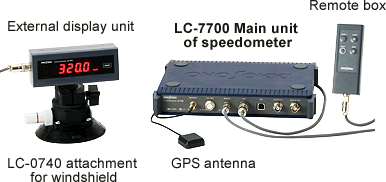

Accessories |
External display unit, cable
for external display unit, remote box, cable for remote box,
antenna x 2, conversion cable, tape switch, power cable, BNC-BNC
cable, USB cable, exclusive application software, connector for
signal input |
|
Option |
・LC-0740 attachment for
windshield
・LC-0750 carrying case |
