ONO SOKKI - PV-7300 Stepping Motor Station

PV-7300

Stepping Motor Station
PV-7300
Stepping Motor Torque Measuring System

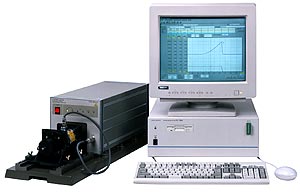

Photo (PV-7300 Stepping Motor Station)

The PV-7300 Stepping Motor Station is the PC based automatic torque measurement system, featuring Window® platform as the operating environment and it can easily realize stepping motor evaluation in simple operation.
It can automatically acquire the data required for evaluations of stepping motors and motor drivers and measured data can be shown in the graph.
The application software is activated on the main unit of the Torque Station and the system offers easy operation to get 7 major characteristics in stepping motor evaluation such like Pull-in, Pull-out, θ-T, Holding torque, Detent torque, Damping characteristics and Position angle.
A variety of torque detectors combined with the PV-7300 system can be chosen according to torque capacity.

Features

Easy to operate, with Windows® based operating environment
Support for a variety of stepping motors in measurement
A variety of torque detector combined, depending on torque capacity and revolution range
Ensure precise torque measurement at ± 0.2% F.S
Can measure and evaluate 7 major characteristics of stepping motor
Automatic measurement by clicking the start button
Graphic display can show necessary data curves such like Pull-in, Pull-out, θ-T, Holding torque, Detent torque, Damping characteristics and Position angle.
Setup conditions and measured data can be stored in the memory on the hard disc of the PV-7300

System Configuration

PV-7300 Stepping Motor Station
PK Series Torque Detector
RK Series Angle Detector
CRT Monitor (optional)
PC Printer (optional)
Motor Support Stand (X-Y table, optional)
Motor Fixture (optional)
Couplings (optional)
Motor Driver (prepared by customer)
Power Meter (optional)

Specifications / PV-7300 Stepping Motor Station

Torque Measurement & Setup Section
Applicable Motors		Stepping motors
Measuring Parameters		Torque, angle, and analog input signal
Measuring Modes		Pull-in, Pull-out, θ-T, Holding torque, Detent torque, Damping characteristics and Position angle.
Accuracy		Torque : ± 0.2 % FS Angle : ± 0.01 % FS (combined with RK Series angle detector) Analog : ± 0.2 % FS
Sampling Clock		1/256 Hz (approx. 4ms, except damping measurement for angular signal) 10μs, 20μs, 50μs, 100μs, 200μs, 500μs, 1ms; (for damping measurement for angular signal)
Hardware	CPU	Intel ® Pentium 233MHz (or upward compatibles)
	Memory	64 MB
	HDD	4 GB or equivalent
	FDD	3.5 inch, 2 mode type (720k / 1.44M)
	VRAM	1 MB, 1024 x 768 dots, 256 colors
	OS	Widows 98 ®
Signal Input Section
Torque Signal		Ono Sokki's PK series torque detectors (Phase-differential type)
Revolution Signal		Ono Sokki's PK series torque detectors (SIG2, Phase-differential type)
Angular Signal		90 ° phase difference incremental sine wave signal from Ono Sokki's RK series angle detector
Analog Signal (4-ch input)		0 to ±10VDC
Display Section (on PC monitor)
Monitor requirement		CRT display of 1024 x 768 pixel resolution, capable of 256 colors
Indicator		Torque : polarity + 4-digit / polarity + 5-digit, selectable Angle : 0 to ±360.00, 0 to ±3600.000 Analog : 6-digit (integer part + decimal places)
Unit		Torque : mNm, Nm, kNm, and other units (can be settable) Angle : deg Analog : any units (can be settable)
File Management		Data and conditions can be save on hard disc or floppy disc of the main unit
Output & Interface Section
Motor Driver	Output configuration	Open collector
	Output signal	Rotational direction signal, clock pulse, excitation on/off command signal, power supply output for interface (switched between 5 to 12V)
	Clock frequency	10 Hz to 800 kHz
LAN Adaptor		Provided as optional function
Printer Interface		Equipped as standard (PC driver should be provided in floppy diskettes)
General
Power supply		100 to 240VAC, 50/60 Hz, approx. 100VA
Operating temperature		0 to +40°C
Outer dimensions		420 (W) x 149 (H) x 449.5 (D) mm
Weight		Approx. 8 kg

Specifications / PK Series Torque Detectors

Model	Max. Torque Capacity (Nm)	Applicable Revolution Range (r/min)	Inertia Moment(gcm²)	Detector Shaft Diameter
PK-102 [Discontinued]	10mNm	0 to 3,000	10gcm²	3mm
PK-202 [Discontinued]	20mNm	0 to 3,000	10gcm²	3mm
PK-502 [Discontinued]	50mNm	0 to 3,000	14gcm²	5mm
PK-103 [Discontinued]	100mNm	0 to 3,000	27gcm²	5mm
PK-203 [Discontinued]	200mNm	0 to 3,000	27gcm²	5mm
PK-503 [Discontinued]	500mNm	0 to 3,000	147gcm²	8mm
PK-104 [Discontinued]	1Nm	0 to 3,000	147gcm²	8mm
PK-204 [Discontinued]	2Nm	0 to 3,000	371gcm²	8mm
PK-504 [Discontinued]	5Nm	0 to 3,000	1.7kgcm²	14mm
PK-105 [Discontinued]	10Nm	0 to 3,000	6.6kgcm²	14mm
PK-205 [Discontinued]	20Nm	0 to 3,000	6.6kgcm²	14mm

Specifications / RK Series Angle Detectors

Model	Detection Method	Shaft Shape	Detector Shaft Diameter	Inertia Moment	Allowable Torque
RK-820 [Discontinued]	Optical phase differential system	Dual shaft	5mm (both ends)	17kgcm²	50mNm or less
RK-830 [Discontinued]	Optical phase differential system	Dual shaft	12mm for motor side 8mm for PK side	29kgcm²	500mNm or less
