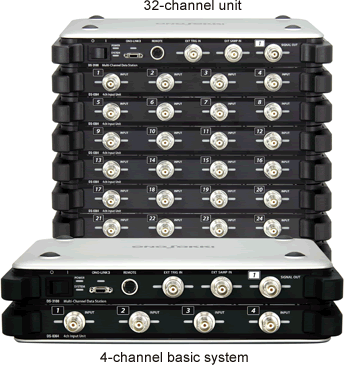

| Measurement general function |
| Input voltage range of measurement signal |
10 mVrms to 10 Vrms（ 7 ranges, 10 dB steps） |
| Number of input terminals/channels of measurement signal |
BNC（voltage input/CCLD selectable）・2 to 32ch（2ch step） |
| Frequency range |
Baseband:4 mHz to 40 kHz(57 bands)
Audio frequency band：6 kHz to 96 kHz（5 bands）, 5.5125 Hz to 88.2 kHz（5 bands）, 4 kHz to 64 kHz（5 bands） |
| Dynamic range |
110 dB（0 dBVr range, 40 kHz ranges, when analyzed at 2048 points） |
| TEDS |
Ver.1.0 (accelerometer, power sensor) |
| Sound filter |
A and C weightings (provided as standard)
Conforms to IEC61672-1:2002 Class1, ANSI S1.4-1983 TYPE1, JIS C1509-1:2005 Class 1 |
| External sampling function |
| Input signal |
Voltage range ±12 V, 0 to 300 kHz（with out of band filter） |
| Detection level/ slope |
-12 V to +12 V（0.025 V-step）/ +（rising）or－（falling） |
| Input pulse/1 rotation |
0.5 to 1024 P/R, 1 to 1024 with frequency dividing function |
| External trigger function |
| Input signal |
Voltage range ±12 V, 0 to 300 kHz（with out of band filter） |
| Detection level/ slope |
－12 V to +12 V（0.025 V-step）/ +（rising）or－（falling） |
| Trigger mode |
Repeat, single, one-shot：depending on software |
| Signal output function |
| Output signal |
±10 mV to ±10 V, 0 to 40 kHz, offset ±10 V |
| Number of output channels |
0 to 5 ch |
| Number of output FFT points |
64 to 16384 points（power-of-two step） |
| Output signal |
Sine wave, swept sine, random (noncorreration between channels), pseudo random, impulse, octave band noise, pink noise, recorded data |
| Burst function |
Provided （single, and output time/output interval time/ number of cycles can be specified.） |
| Built-in method |
DS-0371 (1 ch module)：Built in a main unit
DS-0372 (2 ch unit)：Up to 2 units can be built in. (DS-0371 and DS-0372 can be built in the same system.) |
| Starting / operating application software |
| Starting procedure |
FFT analysis (DS-0321), tracing analysis (DS-0322), real-time octave analysis (DS-0323), throughput disk function(＝recording, DS-0350）can be selected on the screen. Recording function (DS-0350) is operated with FFT or real-time octave analysis. |
| Basic operation |
Operated by menu bar, tool bar, configuration window. The layout/size of the configuration window and the custom window can be changed. The menu bar displays the configuration window. Commonly-used measurement setup items can be placed as tabs on the window (custom window) selected from the configuration window. |
| On-line analysis and off-line analysis |
On-line analysis: Performs analysis while operating the DS-3000 hardware.
Off-line analysis: Analyzes recorded time sampling data
On-line or off-line analysis can be selected on the software.
Both on-line and off-line analyses are available with the on-line analysis license. |

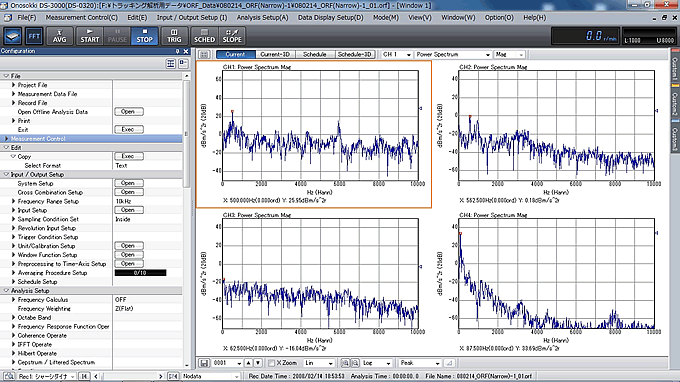

| Measurement window |
Monitor data and measurement data are displayed as multiple windows on the screen. Up to 10 measurement windows can be made and displayed as overlapping display. (FFT/real-time octave/tracking) |
| List function |
Peak, harmonic (total harmonic, distortion rate), user-defined list |
| Recording function (throughput) DS-0350 (option) |
| Maximum recording time |
22 minutes (40 kHz ranges/16 ch) 16 bits, with rotation information |
| Number of ranges / channels |
40 kHz ranges/16ch, 20 kHz ranges/32ch |
| Sampling frequency |
Frequency range × 2.56 Hz |
| File format |
ORF file (Ono Sokki original format)：Rotation information can be recorded. |
| Unit connecting interface （FRAME LINK function） |
Connects up to two units for multi-channel measurement system.
(32ch +32ch=64ch max.) |
| Conversion function |
(File export function）： Converts to TXT, WAV, DADiSP, MATLAB, UNIVERSAL formats. |
| FFT Analysis DS-0321 |
| Analysis frequency range |
4 mHz to 40 kHz |
| FFT real-time rate |
40 kHz ranges / 8 ch, 20 kHz ranges / 16 ch, 10 kHz range / 32 ch
(when internal sampled at 2048 points or less of FFT frame length) |
Number of FFT samplings
(number of spectrum lines) |
64 points (25 lines), 128 points (50 lines), 256 points (100 lines), 512 lines(200 lines), 1024 points (400 lines), 2048 points (800 lines), 4096 points (1600 lines), 8192 points (3200 lines), 16384 points (6400 lines) |
| Window function |
Rectangular, Hanning, Flat-top, Force, Exponential, use-defined |
| Averaging function |
Time-axis summation averaging, time-axis exponential averaging, power spectrum summation averaging, power spectrum exponential averaging, etc. |
| Analysis function (time-axis) |
Time waveform, auto-correlation function, cross-correlation function, impulse response, cepstrum |
| Analysis function(frequency-axis) |
Power spectrum, Fourier spectrum, liftered spectrum, cross spectrum, frequency response function, coherence function, coherence output power |
| Calculation function (time-axis statistical processing) |
Mean value, absolute mean value, rms value, standard deviation, kurtosis, form factor, crest factor, skewness, maximum value, minimum value |
| Analysis screen display |
Up to 64 screens / 1 window （overlapping display in a window）, up to 10 windows,
Up to 64 screens / 1 window with list display |
| Cursor function |
Search cursor, peak cursor, delta cursor |
| Time record function |
Recording function (option)
*Time record data by the DS-2000 series can be read. |
Unit connecting interface
(FRAME LINK function) |
Connects up to two units for multi-channel measurement system. (32 ch + 32 ch =64 ch max.) |
| Simultaneous analysis recording function |
Provided
*Simultaneous analysis recording makes the decreases of the number of recording channels or analysis frequency ranges. For more detail, please contact your nearest distributor or send an e-mail to us.(overseas@onosokki.co.jp) |
| Tracking analysis function DS-0322（option） |
| Tracking analysis type |
Phase tracking, amplitude tracking |
| Sampling method |
Constant ratio tracking（external sampling）：up to maximum analysis orders
Constant width tracking（internal sampling）：Frequency range is same as its FFT analysis. |
| Number of FFT sampling points |
64 to 16384 points (power-of-two step) |
| Averaging function |
Power spectrum exponential averaging, Fourier spectrum exponential averaging |
| Maximum number of analysis order |
800 orders (6.25, 12.5, 25, 50, 100, 200, 400, 800) |
| Maximum number of blocks |
1000 (100, 200, 400, 800, 1000) |
| Analysis screen display |
Up to 64 screens/1 window （overlapping display in a window）, up to 10 windows
Up to 64 screens / 1 window with list display |
| Number of displaying tracking diagrams |
8 lines(MAXord, O.A each) |
| Schedule function |
Rotation schedule (provided automatic falling determination function),time schedule(time trend) |
| Upper/lower-limit setting of number of rotations |
UP(lower limit → upper limit), DOWN(upper limit → lower limit), UP/DOWN(lower limit → upper limit → lower limit), DOWN/UP(upper limit → lower limit → upper limit) |
Unit connecting interface
（FRAME LINK function） |
Connects up to two units for multi-channel measurement system.
(32 ch + 32 ch =64 ch max.) |
| Real-time octave analysis function |
| Octave type |
1/1 octave and 1/3 octave (filter： 6-order Butterworth）
Conforms to IEC 61260 Ed.1.0 (1995) Class 1, ANSI S1.11：2004 Class 1, JIS C 1514：2002 Class 1 |
| Time constant |
10 ms, 35 ms, 125 ms (FAST), 630 ms, 1 s (SLOW), 8 s, IMPULSE (rising 35 ms/falling 1.5 s)
JIS C 1509-1:2005 Class 1, IEC 61672-1:2002 Class 1 |
| Frequency range |
0.8 to 20 kHz (1/3 octave), 1 to 16 kHz (1/1 octave) |
| Calculation function |
Instantaneous value, maximum value / maximum value hold / minimum value hold / power averaging value / power sum value / linear Leq value of every 1 second |
| Analysis screen display |
Up to 64 screens/1 window (overlapping display in a window), up to 10 windows
Provided list display of real-time octave |
Unit connecting interface
（FRAME LINK function） |
Connects up to two units for multi-channel measurement system.
(32 ch + 32 ch =64 ch max.) |
| Simultaneous analysis and recording function |
Provided |
| Option |
DS-0324 (1/N real-time octave analysis function), DS-0322 (tracking analysis function) |
| Specification when using unit connecting function DS-0391 (option) |
| FFT analysis real time rate |
40 kHz ranges / 8 ch （4 ch ＋ 4 ch）, 20 kHz ranges / 16 ch （8ch ＋ 8ch）
（when internal sampling at 2048 points） |
| Recording function: recording range/channel |
20 kHz ranges / 32 ch (16 ch ＋ 16 ch), 10 kHz ranges / 64 ch (32 ch ＋ 32 ch) (when internal sampling at 2048 points) |
| Others |
| Monitor output |
Output signal standardized the input signal by voltage range. (1 Vrms max.)
*Monitor signal after filtered is output when sound filter is used.
Φ 3.5 stereo-mini jack, 2 terminals/unit |
| Maximum number of units |
9 units (1 main unit + 8 input/output unit) |
| Accessories |
Instruction manual, AC adapter, power cable for AC adapter |
| Hardware options |
Power cable for DC input, remote controller (DS-0395), large-sized AC adapter and power cable (sold separately) |
| Applicable OS |
Microsoft® Windows® 7, Vista® (SP 2 or later), XP (SP 2 or later)
*32 bit version only |
| Applicable NET Framework |
.NET Framework 3.5 or later |
| PC interface |
High-speed interface “ONO-LINK 3”
(for desktop PC: PCI Express, for notebook PC: CardBus or ExpressCard 34 / 54) |
| Power voltage / power consumption |
100 to 240 VAC, DC 15 V / 25 to 95 VA (when 15 VDC) |
| Outer dimensions |
269 (W) × 71 to 267 (H) × 217 (D) mm (including protector) |
| Weight |
2.2 kg (4 ch system) to 8.2 kg (32 ch system) |
| Cooling fan |
Required for a system of 5 units or greater.
Provided as standard with the system of 5 units or more.) |
| CE marking |
Compliant |
*Some application software may not be applicable to the above operating environment. For more details, please contact your nearest distributor or send an e-mail to us (overseas@onosokki.co.jp).
*Please note that the DS-3000 series does not work normally when it is used on the above OS by using compatible mode or Microsoft® Virtual PC etc.
*The PC environment may not be subject to certain constrains, depending on the type of application software or hardware used. For more details, please contact your nearest distributor or send an e-mail to us (overseas@onosokki.co.jp).
*Required for a system of 5 units or greater. (Provided as standard with the system of 5 units or more)
