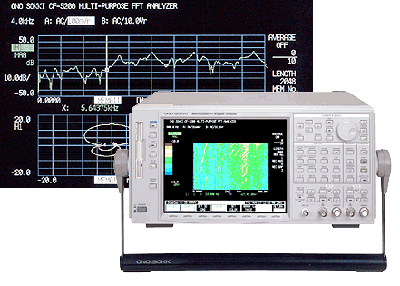

Processing Functions |
Time domain |
Time waveform, absolute-value
waveform, auto/cross-correlation function, impulse response, lissajous
pattern, Hilbert transform, cepstrum, inverse FFT |
|
Frequency domain |
Power spectrum, Fourier spectrum,
cross-spectrum, phase spectrum, frequency response function, coherence
function, coherent output power, 1/1 & 1/3 octave analysis, liftered
spectrum, group delay, rpm order ratio analysis*, rpm tracking analysis* |
|
Amplitude domain |
Amplitude
probability density/distribution function |
| Input
Section |
Number of input channels |
2 |
|
Input configuration |
Isolated
single-ended |
|
Voltage range |
1 mVr to
31.6 Vr |
|
Dynamic range |
90 dB (TYP)
or better |
|
A/D conversion |
16 bits |
|
Amplitude flatness |
±0.1 dB or
better |
|
Cross-talk |
-120 dB or
better |
|
Analysis Section |
Frequency range |
10 mHz to
100 kHz |
|
Frequency accuracy |
±0.005% of
reading |
|
Sampling frequency |
2.56 times
of the selected frequency range, external sampling clock |
|
Frequency resolution |
25 / 50 /
100 / 200 / 400 / 800 / 1600 lines |
|
Window function |
Rectangular,
Hanning, flat-top, force, exponential, and use-defined windows |
|
Averaging |
number of
averaging : 1 to 65535
averaging time : 1s to 999s (in 1s-step) |
|
FFT processing |
32-bit floating
point (IEEE single precision format) |
|
Memory Function Section |
Record memory |
512k word
x 2-ch |
|
Block memory |
200 blocks
(4k bytes/block) |
|
CMOS memory* |
expanded
to 2 M byte |
|
Panel condition memory |
10 kinds |
|
Auto-sequence memory |
7 programs |
|
Floppy disc drive |
3.5 inch
FDD x 1 drive (MS-DOS format compatible) |
|
Output Section |
Data bus |
GP-IB interface |
|
Built-in printer* |
Thermal line
dot type, paper width 112mm |
|
Keyboard interface |
Serial |
|
Video output |
for external
VGA monitor |
|
Signal output* |
Sine, impulse,
swept sine, pseudorandom, random, periodic random, pink random, linear/log
sine sweep, arbitrary waveform |
|
General |
Power supply |
100 to 240
VAC (47 to 440 Hz), 150VA max. |
|
Operating temperature |
0 to +40°C |
|
Outer dimensions |
420 (W) x
200 (H) x 300 (D) mm |
|
Weight |
Approx. 11
kg |
