Overview of Rotary encoder /
roller encoder and related products
Outer Dimension (PDF)
Applications

Rotary Encoder is a representative detector to convert mechanical rotational displacement (analog quantity) to electrical pulse (digital quantity). Rotary encoders can be used for many kinds of applications in various fields such as position, angle or velocity measurement of mechanical instrument, control of rotational quantity or rotational speed in motor.
Ono Sokki provides a variety of rotary encoders ranging from general purpose industrial type to heat resistant type for specialized usage, space-saving compact type for your specific application. Roller encoder, which is applied equipment of rotary encoder, is also available for measurement of moving distance or speed.
Operating principle of Rotary Encoder

Applications of Rotational Detector

Selection guide for RP series Rotary Encoder (specification table for selection)

  • General-purpose Industrial type
  • Heat-Resistant type
  • Compact type
  • Machine-Tool type
  • Built-in type
  • Roller Encoder
  • Peripherals
Rotary Encoder
General-purpose Industrial type
Bottom-mount type Flange-mount type Dual-shaft type Compact Bottom-mount type
製品写真（RP-1710 シリーズ 堅牢据置型　） 製品写真（RP-1730 シリーズ 堅牢フランジタイプ　） RP-120series RP-1130D
RP-1710
series		 More details
RP-1730
series		 More details
RP-120
series		 More details
RP-1130D
series		 More details

Number of pulse output
60, 100, 120, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 750, 800, 900, 960, 1000, 1024, 1200, 1250, 1280, 1440, 1500, 1600, 1800, 2000, 2048, 2400, 2500, 2560, 2880, 3000, 3600, 3750, 4000, 4096, 4500, 4800, 5000, 5120, 6000, 7500, 9000, 12000, 15000, 18000, 22500, 24000, 30000, 36000, 45000, 48000, 60000, 72000, 90000, 96000, 120000 P/R 60,100,120,200,300,360,500,
600,750,1000,1200, 1500,1800, 2000,2500,3000,3600,5000,
6000,9000 P/R
(Option 314,900,4000 P/R)		 200,360,600,1000,
1200,2000,2500 P/R
Maximum rotational speed
5000 r/min 5000 r/min 5000 r/min
Allowable shaft load
80 N (radial)
50 N (thrust)		 80 N (radial)*4
50 N (thrust)		 100 N (radial)
100 N (thrust)
Shaft diameter
φ 15 mm φ 15 mm
Starting torque
15 mN·m 15 mN·m*7 50 mN·m*7
Weight
3.7 kg 5.6 kg 1.3 kg
Protection class
IP 65 IP 65*13 IPX 5
Power requirement
AC 100 V to 240 V/ DC 12 V to 24 V 100 VAC (50 mA)*41 / 12 VDC (100 mA)*43 12 VDC (180 mA)
Click the each model for details.

*Click here to see the details of notes.
Page topup

Heat-Resistant type
Air-cooled type General-purpose Heat-resistant Bottom-mount type General-purpose Heat-resistant Flange-mount type
RP-310 Series RP-3130D Series RP-3330D
RP-310 series
discontinued
RP-3130D series More details
RP-3330D series
discontinued
Number of pulse output
60,100,12,200,300,360,500,600,1000,
1200,1500,1800,2000,2500,3000 P/R		 200,360,600,1000,1200,2000,2500 P/R
(Option*3 3000,4000,5000 P/R)
Maximum rotational speed
4000 r/min 3000 r/min
Allowable shaft load
150 N (radial)
100 N (thrust)		 80 N (radial)
50 N (thrust)
Shaft diameter
φ 18 mm φ 15 mm*5
Starting torque
100 mN·m 11 mN·m*9
Weight
14 kg 3 kg
Protection class
IPX 5
Power requirement
100 VAC (80 mA)*41 /
12 VDC (100 mA)*43 		12 VDC (180 mA)*43

*Click here to see the details of notes.
Page topup
Compact type
Ultra-compact type High-resolution type General-purpose type Compact & flat type
SP-405ZA RP-410Dseries RP-432Z RP-442Z
SP-405ZA More details
RP-410D series
discontinued
RP-432Z More details
RP-442Z More details
Number of pulse output
60,100,200,300,360,500,600 P/R
(option 250,400,800,1000,
1024,1500,1800,2000 P/R) 		60,100,120,200,300,600,1000,1200,
1500,1800,2000,2500,3000,3600 P/R
(option 900, 5000,6000 P/R)*48 		60,120,300,360,500,
600,1000,1024 P/R
1000,1200,2000,2500 P/R
(option 500 P/R)
Maximum rotational speed
6000 r/min 5000 r/min 5000 r/min 5000 r/min
Allowable shaft load
25 N (radial)
15 N (thrust)		 10 N (radial)
5 N (thrust)		 20 N (radial)
10 N (thrust)		 20 N (radial)
10 N (thrust)
Shaft diameter
φ 4 mm φ 6 mm
Starting torque
2 mN·m 1 mN·m 1.5 mN·m 3 mN·m
Weight
0.1 kg 0.9 kg*11 0.25 kg 0.25 kg
Protection class
IP 40 - - -
Power requirement
5 to 12 VDC (50 mA) 12 VDC (100 mA) 5 or 12 VDC (100 mA) 5 VDC (200 mA)
*Click here to see the details of notes.
Page topup

Machine-tool type Built-in type
Oil-proof type Rigid type Water-proof type General-purpose Built-in type
RP-510series RP-5320Dseries RP-5610D RP-8524L
RP-510 series

RP-5320D series More details
RP-5610D More details

RP-8524L More details
Number of output pulse
60,120,200,300,600,1000,1200,
1500,1800,2000,2500,3000,3600 P/R
(option 900 P/R) 		100,200,300,360,500,600,1000,
1200,1800,2000,2500,3000,
4096,5000,6000,8192,10000
P/R*2
(option 314,1024,2048,4000 P/R) 		60,100,200,300,360,500,600 P/R
200,360,600,1000,
1200,2000,2500 P/R
(option*3 100,500,1024,2048,
3000,4000,5000 P/R)
Maximum rotational speed
5000 r/min 5000 r/min 3000 r/min 6000 r/min
Allowable shaft load
40 N (radial)
20 N (thrust)		 50 N (radial)
50 N (thrust)		 80 N (radial)
50 N (thrust)		 30 N (radial)
15 N (thrust)
Shaft diameter
φ 10 mm φ 15 mm φ 15 mm φ 8 mm*6
Starting torque
30 mN·m 20 mN·m 80 mN·m 2 mN·m
Weight
1.2 kg 0.8 kg 3 kg 0.16 kg
Protection class
IP X5F*15 IP X5 IP X7*16 -
Power requirement
100 VAC (50 mA)*42
/ 12 VDC (100 mA) 		12 VDC (150 mA)*43 12 VDC (100 mA) 5 VDC (180 mA)

*Click here to see the details of notes.
Page topup

Selection guide for RP series Rotary Encoder (specification table for selection)

Roller encoder
Roller encoders enable line speed and distance measurements.

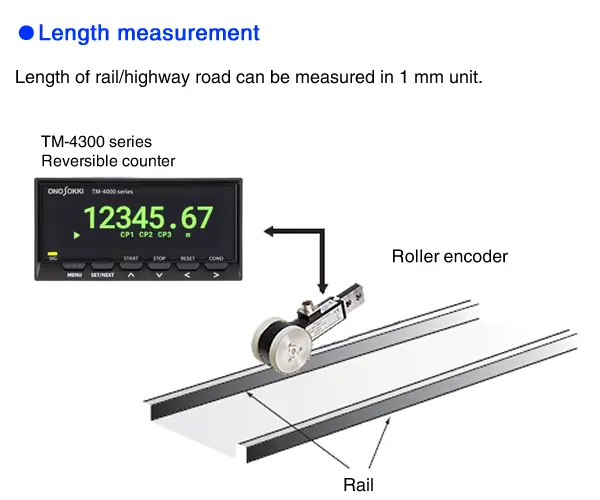

For distance measurement
  • Backlash can be adjusted automatically when stopped in combination of the RV-3150 Reversible counter. (excluding the RP-721)
For line speed measurement
  • Direct readout of line speed is provided.
  • Available to detect speed nearby 0 r/min

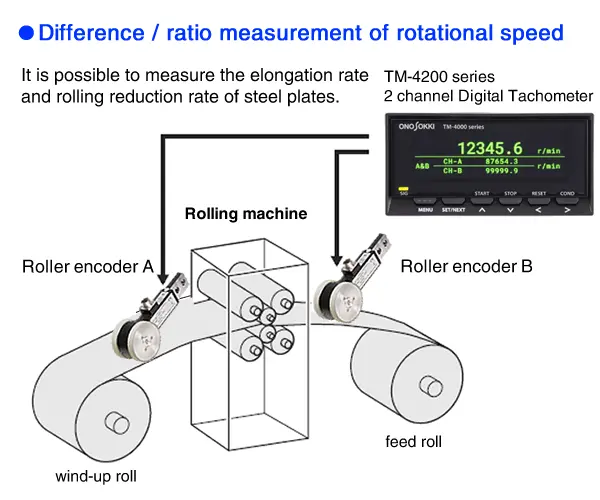

Difference / ratio measuremente of rotational speed
Line speed measurement Line speed/distance measurement Distance measurement Line speed/ distance measurement Line speed/ distance measurement
General-purpose type Low & Medium speed type Reversible counting type High-resolution type Water-proof & heat resistant type
RP-704ZA RP-721 RP-732 RP-7112 RP-7522
RP-704ZA More details
RP-721 More details
RP-732 More details
RP-7112
Made to orde
RP-7522
discontinued
Roller circumference
166.7 mm
(φ 53.05)
200 mm
(φ 63.66)
300 mm
(φ 95.49)
250 mm
(φ 79.58)
Roller material
                                        Al + Polyurethane rubber baked on the roller surface (rubber hardness: A90)
Number of output pulse
100 P/R 120,1200 P/R (speed)
200 P/R (distance)		 300 P/R 1800 P/R (speed)
300,3000 P/R (distance) 		1500 P/R (speed)
2500 P/R (distance)
Power requirement
12 VDC ±5 % (50mA) 12 VDC ±5 % (100mA) 12 VDC ±10 % (120mA) 12 VDC ±5 % (100mA)
Measuring range
0 to 400 m/min 0 to 200 m/min :
1200 P/R
0 to 400 m/min :
120 P/R		 0 to 200 m/min
Measurement unit
0.1 m/min 0.01 m/min :1200 P/R
0.1 m/min :120 P/R 		- 0.01 m/min :1800 P/R 0.01 m/min
- 1 mm :200 P/R 1 mm :300 P/R 0.1 mm :3000 P/R
1 mm :300 P/R		 0.1 mm
Maximum allowable load
5 N 10 N 30 N 10 N
Starting torque
2 mN·m 1 mN·m 5 mN·m 3 mN·m
Weight
0.5 kg 2.2 kg 2.5 kg 0.8 kg
Protection class
-

Dust-proof & water jet-proof (IP55)
High-temperature resistant
Applicable counter
TM-3100 series TM-3100 series
RV-3150		 RV-3150 TM-5100
RV-3150		 TM-3100 series
RV-3150
Connection method
Terminal strip Connector
(RM12BPE-5S)		 Connector
(RM12BPE-5S)		 Water-proof connector
(SNW-2010-PCF)		 Direct attached cable 3 m
(other end: open)

Page topup

Peripherals
Tachometer Reversible counter F/V Convertor Pulse transmitter
TM-3100
series Digital Tachometer (general purpose: 4 models)

 More details
TM-5100
Digital Tachometer with 2-ch calculation function
RV-3150
Reversible Counter
 More details

FV-1400
F/V Convertor
High-speed type

 More details
PA-330Z
solation pulse transmitter
TM-2000series TM-5100 RV-3150 FV-1400 PA-150
Features
TM-3110: Basic model for measurement and display

TM-3120: BCD output
TM-3130: Analog output
TM-3140: Comparator output

High response speed at 100 kHz
Able to add more functions by optional cards
The fluorescent display tube greatly improves stability and readability.
Applicable to CE marking and improved the tolerance to noise.
Applicable to DIN standard.
Features
BCD output
Analog output
Comparator output
RS-232C
2-ch calculation
Features
Reversible counter for measurement of linear displacement, displacement or dimension etc.
For data communication to an external equipment, comparator, BCD, analog and RS-232C are available. 4 kinds of comparators can be set up.
Features
DC power input (12 to 42 VDC) is convenient for in-vehicle use.
Display of frequency/rotational speed can be selected.
Input frequency range: 1 to 120kHz
Features
The PA-330Z receives the square wave signals from the rotary encoder, and converts it to low impedance signals suitable for long distance transmission after waveshapening and amplifying via photocouplers which provide isolation between input and output.
A 12VDC external power supply is provided for use with the DC powered RP series encoder.
The case is sealed construction which allows closely mounting to the encoder.


Applicable sensors
Applicable sensors
RPseries
LGseries
MPseries
Applicable sensors
RPseries
GSseries
Applicable sensors
RPseries
MPseries
Applicable sensors
RPseries
Click the each model for details.
up

Revised: 2011/12/01

Contact Us Questions and Inquireies (Feedback form) Back to previous page
