FM-3100 Digital Flow Meter
| Volumetric Flow Meter DF-2410 (old) |
Digital Flow Meter FM-2500A (old) |
Digital Flow Meter FM-3100 |
On-board Flow Meter DF-2200 |
|
|---|---|---|---|---|
| Sampling interval | 1 to 99 s | 100 ms | 1 ms | 1 ms |
| Exponential average | - | - | arbitrary (1 to 10,000) | arbitrary (1 to 1,000) |
| Moving average | - | - | arbitrary (1 to 10,000) | 50 data |
| Analog output exponential average | - (interval average) | Exponential average 15 data fixed |
- | - |
| Analog output update interval | 1.5 s | 100 ms | 1 ms | 10 ms or 1 ms (option) |
| Indication on display | - | - | 0.5, 1 to 10 s | 0.5, 1 to 10 s |
| Display update cycle | 1 to 99 s | 1 to 10 s | 0.5 s | 0.5, 1 to 10 s |
| Communication | GPIB BCD RS-232C (option) |
RS-232C GPIB (option) DIDO (100 ms : option) |
RS-232C CAN (1 ms) |
CAN 10 ms CAN (1 ms:option) RS-232C (option) |
| Applicable detectors | FP (excluding FP-5000 series) |
FP/FZ/FX | FP/FD/FZ/FX | FP (excluding FP-5150 series, FP-215) |
| Languages | English | English | English Chinese (option) |
English |
| Size (mm) | Approx. 360 (W) × 99 (H) × 450 (D) | 360 (W) × 99 (H) × 301 (D) | 240 (W) × 99(H) × 297(D) | 170 (W) × 49(H) × 120(D) |
| Display method | Monochrome | Monochrome | LCD | Fluorescent display tube |
| Power supply voltage | AC 100 to 240 V | AC 100 to 240 V | AC 100 to 240 V | DC 10 to 8 V |
| On-board | N.A. | N.A. | N.A. | Available |
| Rotation signal input | - | 2 for rotation signals 1 for pulse signals |
Pulse input only | - |
| Connection with FP-5000 High resolution type |
Not supported | Not supported | Available | Not supported (FP-5151 neither) |
Last updated:2021/12/27
Please use FM-0012 analog output conversion adapter (D-sub to BNC(J), 0.5 m).
Last updated:2021/12/27
The FM-2500A updates analog output every 100 ms. The FM-3100 updates every 1 ms.
RS-232C conversion adapter
PE3534394 (Sold separately)
Last updated:2021/12/27
We provide a made to order mounting bracket that can use the same mounting holes as the FM-2500A.
Last updated:2021/12/27
Yes, the inter-module calculation function equivalent to FM-0210 is equipped as standard on FM-3100. It enables calculation with two detector modules built into the FM-3100.
Last updated:2021/12/27
Please use the PE3534394 (option, RS-232C conversion adapter for D-sub 9-pin male, 0.1 m).
Last updated:2021/12/27
Partially not. Please refer to the instruction manual, digital communication for FM-3100.
Last updated:2021/12/27
Use the FM-0011 mounting fixture for the FM-3100. If compatibility is required, use the made-to-order mounting fixtures of W420 and W480. Please contact us for details.
Last updated:2021/12/27
The FM-3100 analog output is voltage only.
Last updated:2021/12/27
- AC power cable (2m x1)
- FM-0012 analog output conversion adapter
(D-Sub to BNC, 0.5m, 1 piece per module) - Instruction manual (2 manuals-this volume and digital communication)
Last updated:2021/12/27
Yes, please contact us.
Last updated:2021/12/27
The linearity of the analog output is 0.1 %/F.S. for 0 to +10 V or -10 to +10 V.
Last updated:2021/12/27

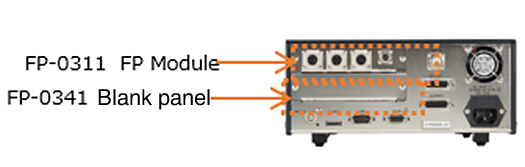

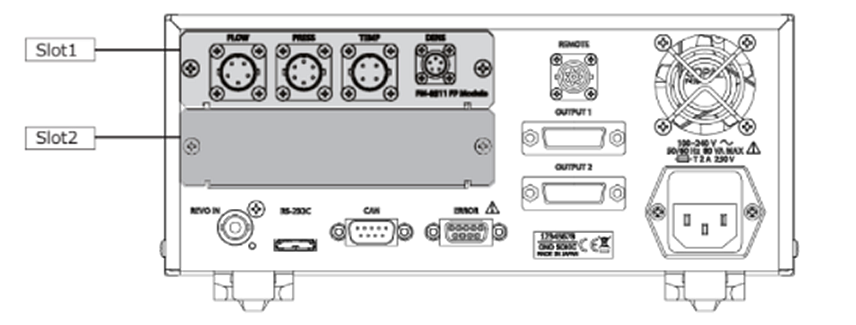

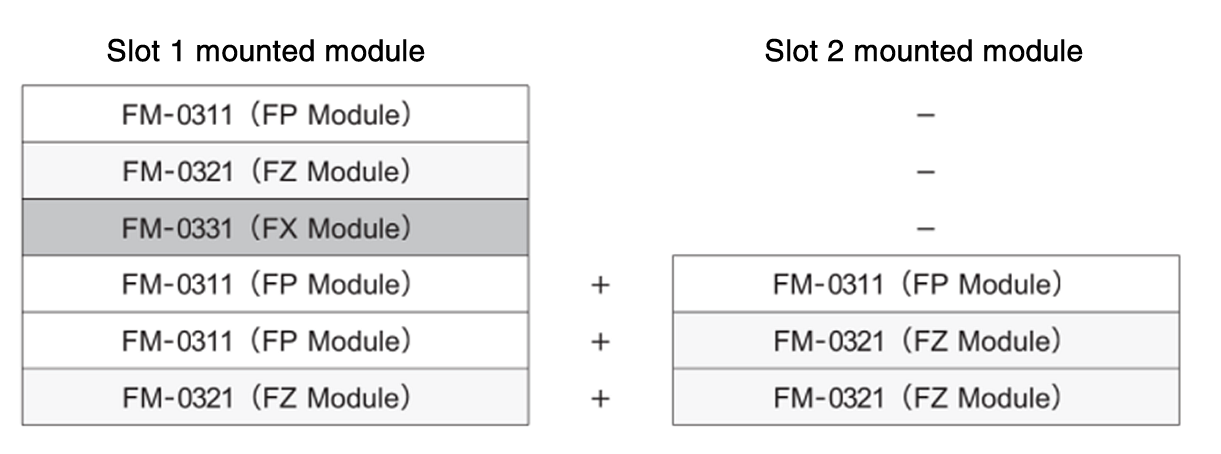

Up to two modules can be mounted on the FM-3100. There are 6 combinations as follow.
Last updated:2021/12/27
Yes, but only the following operations are available: Start, Stop, Hold & Reset. Setting cannot be rewritten.
Last updated:2021/12/27
Combination calibration is not currently performed. We calibrate the detector, FM-3100 alone.
Last updated:2021/12/27
Yes, the input temperature range of FM-3100 is-50 °C to 200 °C. Analog output scale setting range is -50 °C to 200 °C.
Last updated:2021/12/27
The integration calculation is available up to 2,777.7 h (9,99,999 sec, 166,666.7 min, 115.7 day)
Last updated:2021/12/27

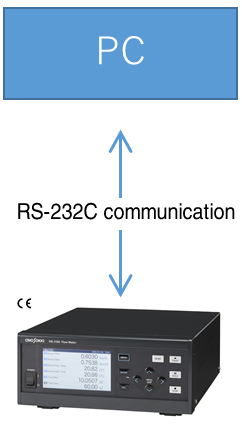

The CAN communication is capable of high-speed output of 1 ms update, but the settings cannot be changed. The RS-232C communication can change almost all settings and perform measurement, but it is slower than CAN in terms of communication speed.
Last updated:2021/12/27
No, but if you manually set the Auto Stop function in FM-3100 in advance, you can read data via the CAN communication. Use the RS-232C communication to set the Auto Stop function and perform all measurements online.
- Auto Stop function for integration using the RS-232C communication
- Set AutoStop conditions (total time, total flow, etc.).
- Start command
- Read the data after the measurement is completed.
- Auto Stop function for integration using the CAN communication
- Set AutoStop conditions (total time, total flow, etc.) in the FM-3100
- Start command via CAN
- Read the data after the measurement is completed.
Last updated:2021/12/27
Yes.
Start the FM-3100 with external communication device (RS-232C, CAN) and then stop the FM-3100 with the remote control.
Last updated:2021/12/27
Yes,
however, when performing integrated measurement multiple times, if the FAMS system is stopped after the standby, the total time of integration may not be the same due to communication delay. Therefore, the Auto Stop function of FM-3100 is suitable.
Last updated:2021/12/27
Yes, it can measure with the same period of time until the integration operation is stopped. The setting condition can be selectable from Total Time, Total Flo, and Total Revo.
Last updated:2021/12/27
