DF-2200 On-Board Flow Meter

What the maximum total time is?

Up to 2,777.7 hours (9,999,999 sec/166,66.7 min/115.7 day)

Last updated:2021/12/27

Is it possible to measure fuel consumption when driving on actual roads using the FP series + DF-2200 and GPS speedometer?

In combination of the LC series GPS speedometer (LC-0832 Fuel Consumption Test software), they enables to measure the fuel consumption of vehicles when driving on actual road. The measurement items are steady-state fuel consumption test and pattern traveling fuel consumption test.

*The general-purpose I/O connector of LC-8310 cannot supply the power required to operate the DF-2200, thus prepare power supply separately.

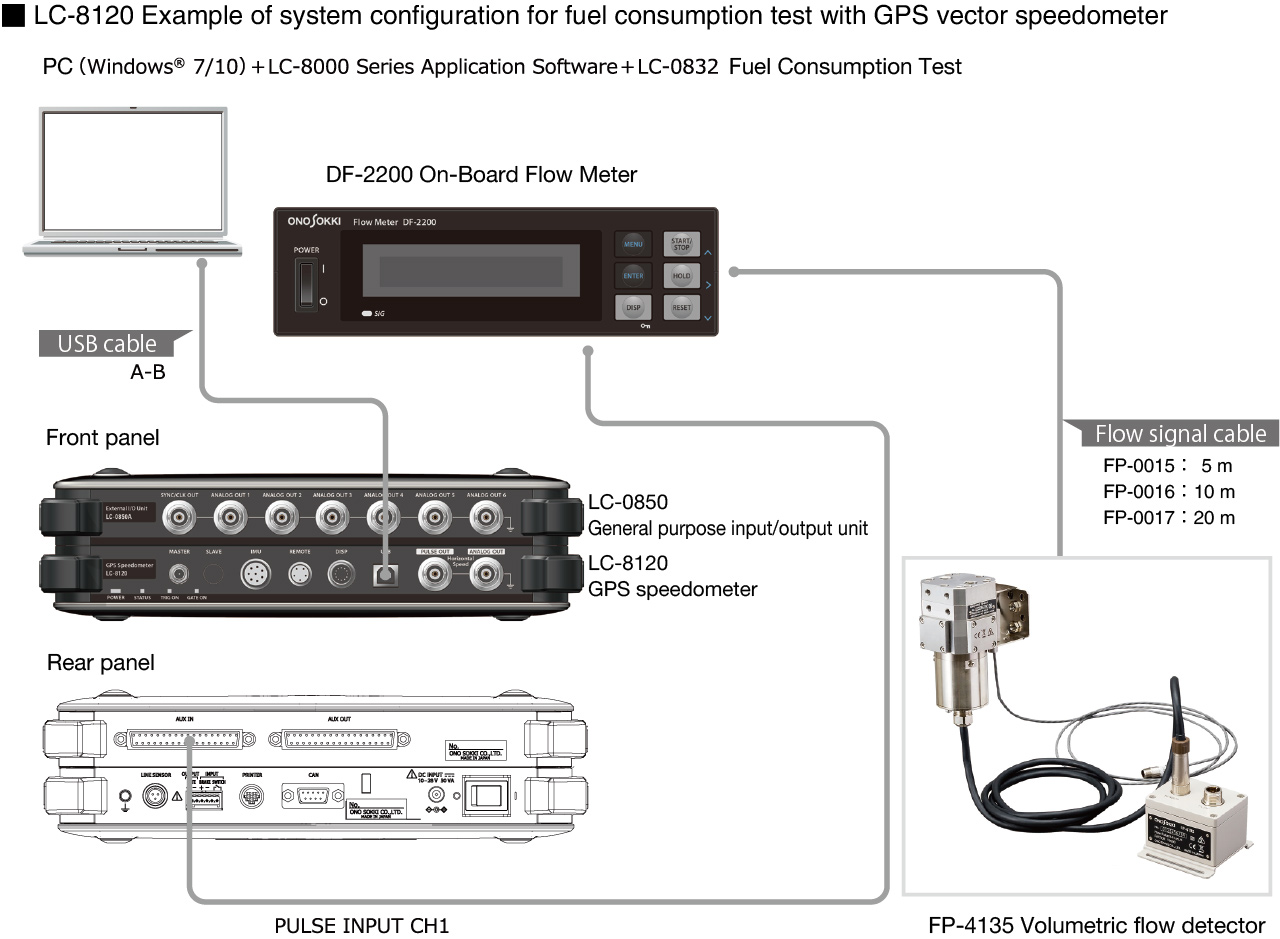

System configuration for fuel consumption test with GPS speedometer
